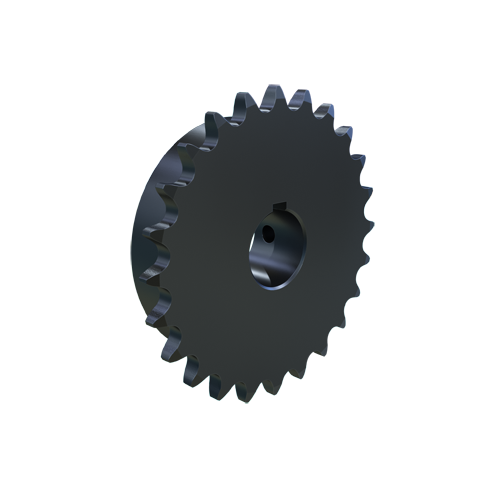

MARTIN SPROCKET 41BS24 1 Roller Chain Sprocket, 41 Chain No., 1 Inch Bore, 4.098 Inch Outside Dia. Steel
Get it by Tuesday, Jun 17
€82.49 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 41 |
| Chain Pitch | 1/2" |
| Construction | Solid |
| Finished Bore Size | 1" |
| For Chain Number | 41 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Outside Dia. | 3" |
| Individually Packaged | Yes |
| Keyway Size | 1/4" x 1/8" |
| Length Through Bore | 1" |
| Material | Steel |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 24 |
| Outside Dia. | 4.098" |
| Pitch Dia. | 3.8306" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 5/16"-18 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.227" |
| Storage Dimension Height | 1.06" |
| Storage Dimension Length | 4 5/16" |
| Storage Dimension Width | 4 5/16" |
| Weight | 1.8 lbs. |
| Ship weight (kg) | 0.88 |
| Ship height (cm) | 2.69 |
| Ship length (cm) | 10.41 |
| Ship width (cm) | 10.41 |
| Product | Model | Price | |
|---|---|---|---|
 |
41BS9 1/2 | €23.53 | |
 |
41BS10 1/2 | €24.69 | |
 |
41BS11 1/2 | €25.59 | |
 |
41BS12 1/2 | €27.21 | |
 |
41BS13 1/2 | €28.14 | |
 |
41BS14 1/2 | €29.76 | |
 |
41BS15 1/2 | €32.29 |
