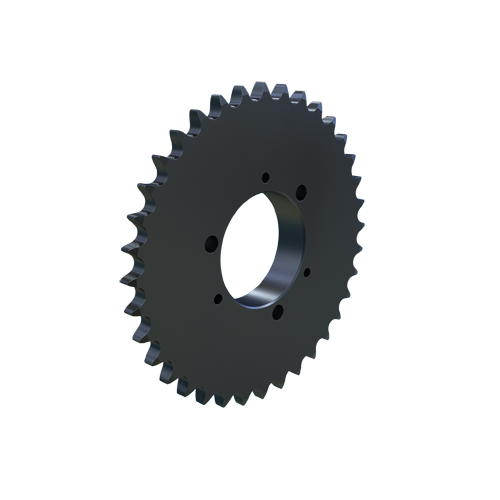

MARTIN SPROCKET 40SDS36 Sprocket, QD, 40 Chain, 36 Teeth, 5.737 Inch Pitch Dia., 6.015 Inch O.D., Steel
Get it by Tuesday, Jun 17
€132.23 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | SDS |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Construction | Welded |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Outside Dia. | 3.188" |
| Individually Packaged | No |
| Length Through Bore | 3/4" |
| Material | Steel |
| Max. Bore Size | 2" |
| Min. Bore Size | 1/2" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 36 |
| Outside Dia. | 6.015" |
| Pitch Dia. | 5.7369" |
| Single Strand Tooth Thickness | 0.284" |
| Storage Dimension Height | 3/4" |
| Storage Dimension Length | 6.015" |
| Storage Dimension Width | 6.015" |
| Ship weight (kg) | 0.86 |
| Ship height (cm) | 3.51 |
| Ship length (cm) | 15.29 |
| Ship width (cm) | 15.29 |
