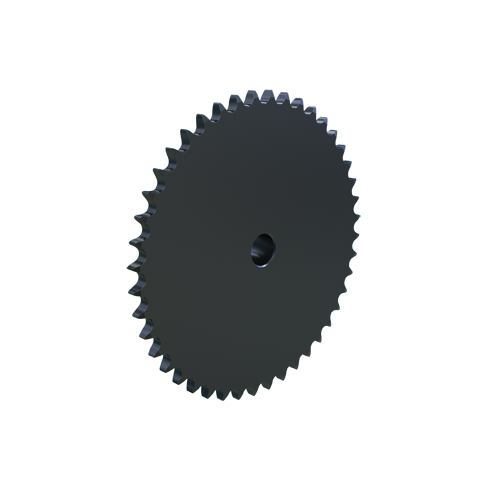

MARTIN SPROCKET 40B44 Sprocket, 40 Chain, 44 Teeth, 7.009 Inch Pitch Dia., 7.291 Inch O.D., Steel
Get it by Tuesday, Jun 17
€99.65 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Construction | Welded |
| Finished Bore Size | 3/4" |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Outside Dia. | 3 1/2" |
| Individually Packaged | No |
| Length Through Bore | 1 1/8" |
| Material | Steel |
| Max. Bore Size | 2 3/8" |
| Min. Bore Size | 3/4" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 44 |
| Outside Dia. | 7.291" |
| Pitch Dia. | 7.0088" |
| Single Strand Tooth Thickness | 0.284" |
| Storage Dimension Height | 1 1/8" |
| Storage Dimension Length | 7.29" |
| Storage Dimension Width | 7.29" |
| Weight | 5.11 lbs. |
| Ship weight (kg) | 2.3 |
| Ship height (cm) | 2.87 |
| Ship length (cm) | 18.52 |
| Ship width (cm) | 18.52 |
