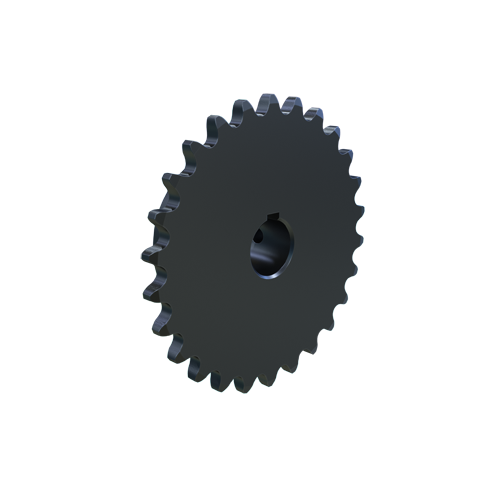

MARTIN SPROCKET 35BS26HT 5/8 Roller Chain Sprocket, 0.625 Inch Bore, 3.313 Inch Outside Dia. Steel, Hardened
Get it by Tuesday, Jun 17
€97.77 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 35 |
| Chain Pitch | 3/8" |
| Construction | Solid |
| Finished Bore Size | 5/8" |
| For Chain Number | 35 |
| For Chain Pitch | 3/8" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Outside Dia. | 2" |
| Individually Packaged | Yes |
| Keyway Size | 3/16" x 3/32" |
| Length Through Bore | 7/8" |
| Material | Steel |
| Max. Bore Size | 1 3/8" |
| Min. Bore Size | 5/8" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 26 |
| Outside Dia. | 3.313" |
| Pitch Dia. | 3.1111" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 1/4"-20 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.168" |
| Storage Dimension Height | 15/16" |
| Storage Dimension Length | 3 1/2" |
| Storage Dimension Width | 3 1/2" |
| Ship weight (kg) | 0.4 |
| Ship height (cm) | 2.38 |
| Ship length (cm) | 8.41 |
| Ship width (cm) | 8.41 |
| Product | Model | Price | |
|---|---|---|---|
 |
35BS9HT 3/8 | €32.09 | |
 |
35BS10HT 3/8 | €33.99 | |
 |
35BS11HT 3/8 | €35.89 | |
 |
35BS10HT 1/2 | €33.99 | |
 |
35BS11HT 1/2 | €35.89 | |
 |
35BS12HT 1/2 | €37.33 | |
 |
35BS13HT 1/2 | €39.21 |
