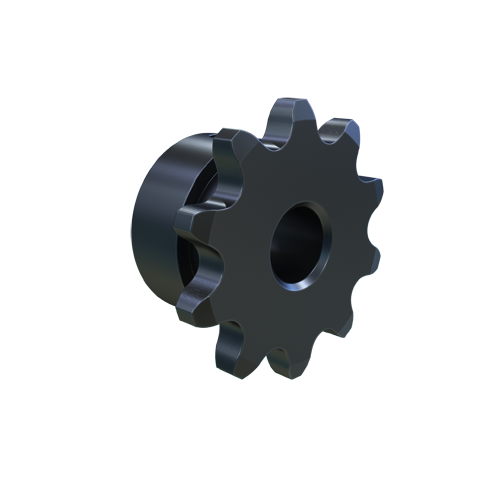

| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 35 |
| Chain Pitch | 3/8" |
| Construction | Solid With Recess Groove |
| Finished Bore Size | 3/8" |
| For Chain Number | 35 |
| For Chain Pitch | 3/8" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Outside Dia. | 0.9688" |
| Hub Recessed For Chain | 1 |
| Individually Packaged | Yes |
| Length Through Bore | 3/4" |
| Material | Steel |
| Max. Bore Size | 5/8" |
| Min. Bore Size | 3/8" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 10 |
| Outside Dia. | 1.379" |
| Pitch Dia. | 1.2135" |
| Set Screw Location | (2) 90° Apart (No Keyway) |
| Set Screw Size | #10-24 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.168" |
| Storage Dimension Height | 13/16" |
| Storage Dimension Length | 1 1/2" |
| Storage Dimension Width | 1 1/2" |
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 1.91 |
| Ship length (cm) | 3.51 |
| Ship width (cm) | 3.51 |
| Product | Model | Price | |
|---|---|---|---|
 |
35BS9HT 3/8 | €32.09 | |
 |
35BS11HT 3/8 | €35.89 | |
 |
35BS10HT 1/2 | €33.99 | |
 |
35BS11HT 1/2 | €35.89 | |
 |
35BS12HT 1/2 | €37.33 | |
 |
35BS13HT 1/2 | €39.21 | |
 |
35BS14HT 1/2 | €40.15 |
