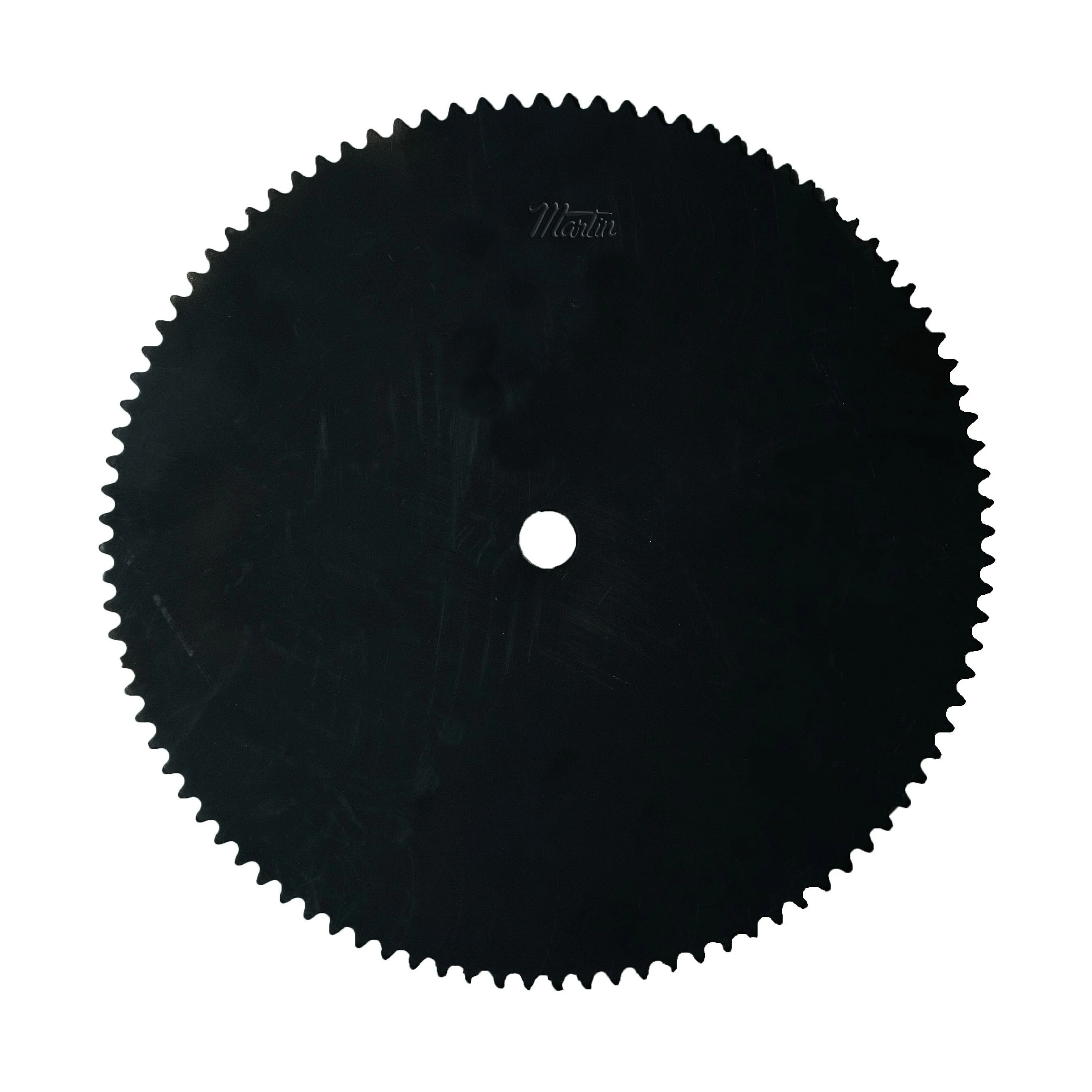

MARTIN SPROCKET 35A112 Sprocket, Stock Bore, 112 Teeth, 13.371 Inch Pitch Dia., 13.591 Inch O.D., Steel
Get it by Tuesday, Jun 17
€110.32 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 35 |
| Chain Pitch | 3/8" |
| Construction | Solid |
| Finished Bore Size | 0.7188" |
| For Chain Number | 35 |
| For Chain Pitch | 3/8" |
| Hub Configuration | A |
| Individually Packaged | No |
| Length Through Bore | 0.1545" |
| Material | Steel |
| Min. Bore Size | 0.7188" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 112 |
| Outside Dia. | 13.591" |
| Pitch Dia. | 13.3708" |
| Single Strand Tooth Thickness | 0.168" |
| Storage Dimension Height | 0.168" |
| Storage Dimension Length | 13.59" |
| Storage Dimension Width | 13.59" |
| Weight | 6.09 lbs. |
| Ship weight (kg) | 2.74 |
| Ship height (cm) | 0.43 |
| Ship length (cm) | 34.52 |
| Ship width (cm) | 34.52 |
