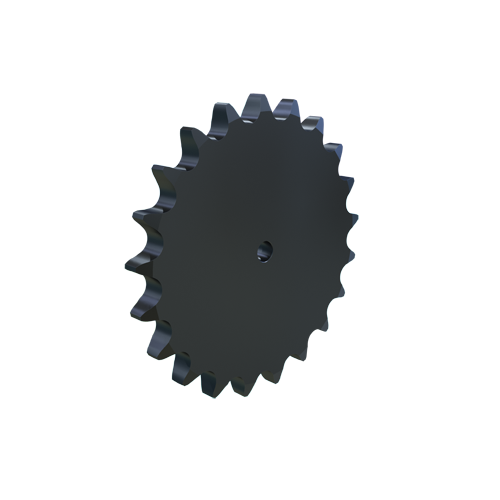

MARTIN SPROCKET 240A21 Sprocket, 240 Chain, 21 Teeth, 20.129 Inch Pitch Dia., 21.704 Inch O.D., Steel
Get it by Tuesday, Jun 17
€1,679.87 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 240 |
| Chain Pitch | 3" |
| Construction | Solid |
| Finished Bore Size | 1 1/2" |
| For Chain Number | 240 |
| For Chain Pitch | 3" |
| Hub Configuration | A |
| Individually Packaged | No |
| Length Through Bore | 1.6945" |
| Material | Steel |
| Min. Bore Size | 1 1/2" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 21 |
| Outside Dia. | 21.704" |
| Pitch Dia. | 20.1285" |
| Single Strand Tooth Thickness | 1.738" |
| Storage Dimension Height | 1.738" |
| Storage Dimension Length | 21.704" |
| Storage Dimension Width | 21.704" |
| Weight | 141.46 lbs. |
| Ship weight (kg) | 66.6 |
| Ship height (cm) | 4.41 |
| Ship length (cm) | 55.12 |
| Ship width (cm) | 55.12 |
