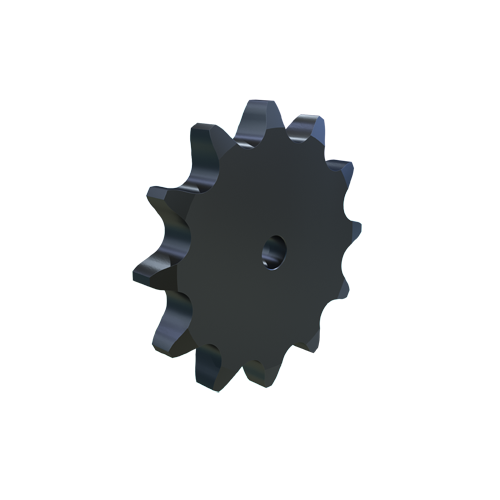

MARTIN SPROCKET 240A12 Sprocket, 240 Chain, 12 Teeth, 11.591 Inch Pitch Dia., 12.996 Inch O.D., Steel
Get it by Tuesday, Jun 17
€843.37 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 240 |
| Chain Pitch | 3" |
| Construction | Solid |
| Finished Bore Size | 1 1/2" |
| For Chain Number | 240 |
| For Chain Pitch | 3" |
| Hub Configuration | A |
| Individually Packaged | No |
| Length Through Bore | 1.6945" |
| Material | Steel |
| Min. Bore Size | 1 1/2" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 12 |
| Outside Dia. | 12.996" |
| Pitch Dia. | 11.5911" |
| Single Strand Tooth Thickness | 1.738" |
| Storage Dimension Height | 1.738" |
| Storage Dimension Length | 12.996" |
| Storage Dimension Width | 12.996" |
| Weight | 43.82 lbs. |
| Ship weight (kg) | 19.72 |
| Ship height (cm) | 4.41 |
| Ship length (cm) | 33.02 |
| Ship width (cm) | 33.02 |
