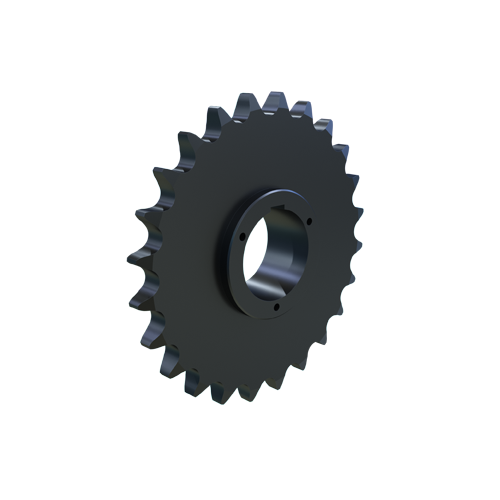

MARTIN SPROCKET 200U24 Sprocket, 200 Chain, 24 Teeth, 19.153 Inch Pitch Dia., 20.489 Inch O.D., Steel
Get it by Tuesday, Jun 17
€2,036.39 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | U0 |
| Chain Number | 200 |
| Chain Pitch | 2 1/2" |
| Construction | Welded |
| For Chain Number | 200 |
| For Chain Pitch | 2 1/2" |
| Hub Configuration | C |
| Hub Outside Dia. | 8 1/2" |
| Individually Packaged | No |
| Keyway Size | 1 1/4" |
| Length Through Bore | 3 3/4" |
| Material | Steel |
| Max. Bore Size | 5 1/2" |
| Min. Bore Size | 2 3/8" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 24 |
| Outside Dia. | 20.489" |
| Pitch Dia. | 19.1532" |
| Single Strand Tooth Thickness | 1.389" |
| Storage Dimension Height | 3 3/4" |
| Storage Dimension Length | 20.489" |
| Storage Dimension Width | 20.489" |
| Weight | 112 lbs. |
| Ship weight (kg) | 50.4 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 52.04 |
| Ship width (cm) | 52.04 |
