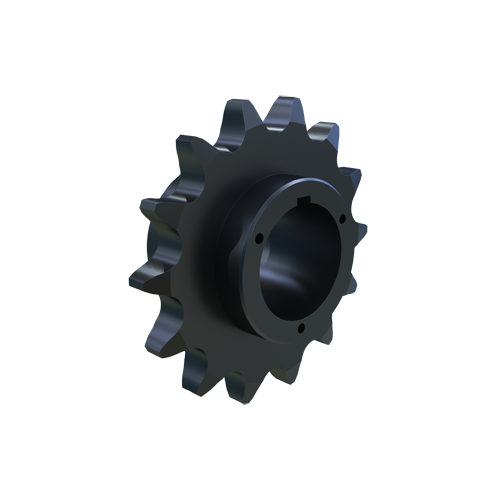

MARTIN SPROCKET 200S14 Sprocket, 200 Chain, 14 Teeth, 11.235 Inch Pitch Dia., 12.453 Inch O.D., Steel
Get it by Tuesday, Jun 17
€992.93 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | S2 |
| Chain Number | 200 |
| Chain Pitch | 2 1/2" |
| Construction | Welded |
| For Chain Number | 200 |
| For Chain Pitch | 2 1/2" |
| Hub Configuration | C |
| Hub Outside Dia. | 6 1/2" |
| Individually Packaged | No |
| Keyway Size | 3/4" |
| Length Through Bore | 5 11/16" |
| Material | Steel |
| Max. Bore Size | 4 3/16" |
| Min. Bore Size | 1 7/8" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 14 |
| Outside Dia. | 12.453" |
| Pitch Dia. | 11.2349" |
| Single Strand Tooth Thickness | 1.389" |
| Storage Dimension Height | 5.69" |
| Storage Dimension Length | 12.453" |
| Storage Dimension Width | 12.453" |
| Weight | 49 lbs. |
| Ship weight (kg) | 22.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 31.62 |
| Ship width (cm) | 31.62 |
