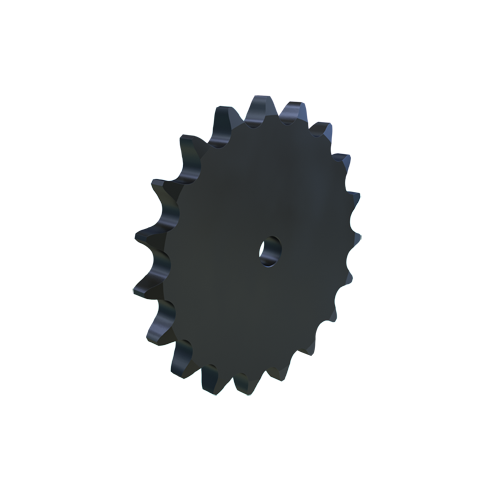

MARTIN SPROCKET 180A19 Sprocket, 180 Chain, 19 Teeth, 13.670 Inch Pitch Dia., 14.834 Inch O.D., Steel
Get it by Tuesday, Jun 17
€745.92 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 180 |
| Chain Pitch | 2 1/4" |
| Construction | Solid |
| Finished Bore Size | 1 1/2" |
| For Chain Number | 180 |
| For Chain Pitch | 2 1/4" |
| Hub Configuration | A |
| Individually Packaged | No |
| Length Through Bore | 1 1/4" |
| Material | Steel |
| Min. Bore Size | 1 1/2" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 19 |
| Outside Dia. | 14.834" |
| Pitch Dia. | 13.67" |
| Single Strand Tooth Thickness | 1.301" |
| Storage Dimension Height | 1.301" |
| Storage Dimension Length | 14.834" |
| Storage Dimension Width | 14.834" |
| Weight | 47.37 lbs. |
| Ship weight (kg) | 21.15 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 37.67 |
| Ship width (cm) | 37.67 |
