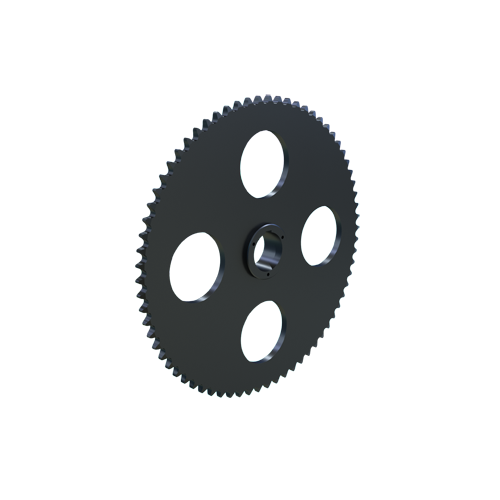

MARTIN SPROCKET 160U70 Sprocket, 160 Chain, 70 Teeth, 44.578 Inch Pitch Dia., 45.733 Inch O.D., Steel
Get it by Wednesday, Jun 18
€4,699.85 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | U0 |
| Chain Number | 160 |
| Chain Pitch | 2" |
| Construction | Welded With Lightening Holes |
| For Chain Number | 160 |
| For Chain Pitch | 2" |
| Hub Configuration | C |
| Hub Outside Dia. | 8 1/2" |
| Individually Packaged | No |
| Keyway Size | 1 1/4" |
| Length Through Bore | 3 3/4" |
| Material | Steel |
| Max. Bore Size | 5 1/2" |
| Min. Bore Size | 2 3/8" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 70 |
| Outside Dia. | 45.733" |
| Pitch Dia. | 44.5783" |
| Single Strand Tooth Thickness | 1.156" |
| Storage Dimension Height | 3 3/4" |
| Storage Dimension Length | 45.733" |
| Storage Dimension Width | 45.733" |
| Weight | 395 lbs. |
| Ship weight (kg) | 177.51 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 116.15 |
| Ship width (cm) | 116.15 |
