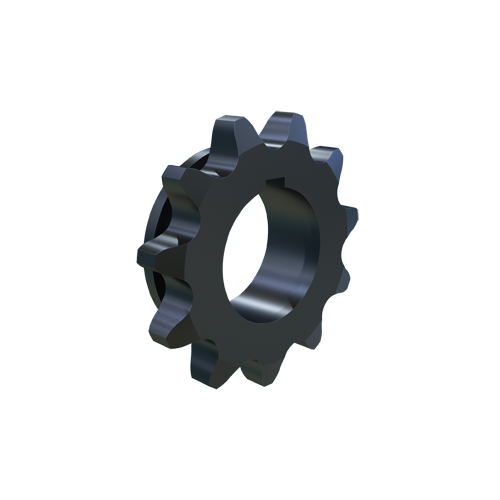

MARTIN SPROCKET 160R11H Sprocket, 160 Chain, 11 Teeth, 7.099 Inch Pitch Dia., 8.011 Inch O.D., Steel
Get it by Tuesday, Jun 17
€770.82 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | R1 |
| Chain Number | 160 |
| Chain Pitch | 2" |
| Construction | Solid |
| For Chain Number | 160 |
| For Chain Pitch | 2" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Outside Dia. | 5.812" |
| Hub Recessed For Chain | 1 |
| Individually Packaged | No |
| Keyway Size | 3/4" |
| Length Through Bore | 2" |
| Material | Steel |
| Max. Bore Size | 3 3/4" |
| Min. Bore Size | 1 1/8" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 11 |
| Outside Dia. | 8.011" |
| Pitch Dia. | 7.0989" |
| Single Strand Tooth Thickness | 1.156" |
| Storage Dimension Height | 2 1/4" |
| Storage Dimension Length | 8.011" |
| Storage Dimension Width | 8.011" |
| Weight | 11 lbs. |
| Ship weight (kg) | 4.95 |
| Ship height (cm) | 5.72 |
| Ship length (cm) | 20.35 |
| Ship width (cm) | 20.35 |
