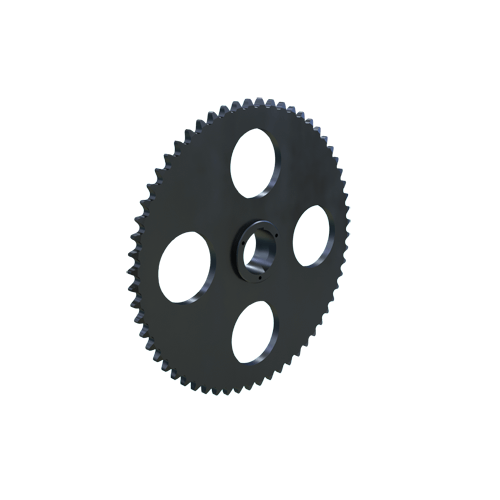

MARTIN SPROCKET 160U60 Sprocket, MST, 160 Chain, 60 Teeth, 38.215 Inch Pitch Dia., 39.362 Inch O.D., Steel
Get it by Tuesday, Jun 17
€3,720.96 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | U0 |
| Chain Number | 160 |
| Chain Pitch | 2" |
| Construction | Welded With Lightening Holes |
| For Chain Number | 160 |
| For Chain Pitch | 2" |
| Hub Configuration | C |
| Hub Outside Dia. | 8 1/2" |
| Individually Packaged | No |
| Keyway Size | 1 1/4" |
| Length Through Bore | 3 3/4" |
| Material | Steel |
| Max. Bore Size | 5 1/2" |
| Min. Bore Size | 2 3/8" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 60 |
| Outside Dia. | 39.362" |
| Pitch Dia. | 38.2146" |
| Single Strand Tooth Thickness | 1.156" |
| Storage Dimension Height | 3 3/4" |
| Storage Dimension Length | 39.362" |
| Storage Dimension Width | 39.362" |
| Weight | 284.69 lbs. |
| Ship weight (kg) | 128.11 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 99.97 |
| Ship width (cm) | 99.97 |
