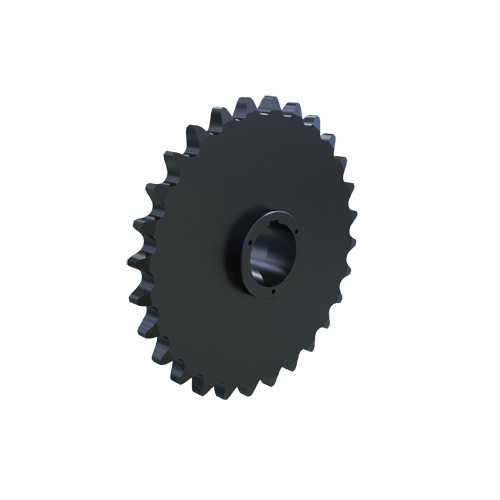

MARTIN SPROCKET 160R28H Sprocket, 160 Chain, 28 Teeth, 17.863 Inch Pitch Dia., 18.950 Inch O.D., Steel
Get it by Tuesday, Jun 17
€1,480.78 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | R2 |
| Chain Number | 160 |
| Chain Pitch | 2" |
| Construction | Welded |
| For Chain Number | 160 |
| For Chain Pitch | 2" |
| Hardened Teeth | 1 |
| Hub Configuration | C |
| Hub Outside Dia. | 5 1/2" |
| Individually Packaged | No |
| Keyway Size | 3/4" |
| Length Through Bore | 4" |
| Material | Steel |
| Max. Bore Size | 3 5/8" |
| Min. Bore Size | 1 3/8" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 28 |
| Outside Dia. | 18.95" |
| Pitch Dia. | 17.8628" |
| Single Strand Tooth Thickness | 1.156" |
| Storage Dimension Height | 4" |
| Storage Dimension Length | 18.95" |
| Storage Dimension Width | 18.95" |
| Weight | 83 lbs. |
| Ship weight (kg) | 37.35 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 48.13 |
| Ship width (cm) | 48.13 |
