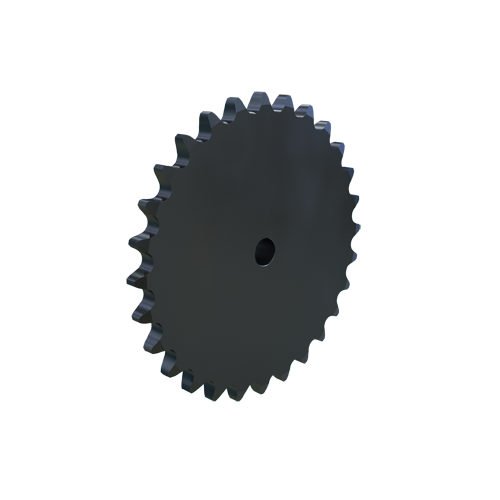

MARTIN SPROCKET 140B28 Sprocket, 140 Chain, 28 Teeth, 15.630 Inch Pitch Dia., 16.582 Inch O.D., Steel
Get it by Wednesday, Jun 18
€694.52 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 140 |
| Chain Pitch | 1 3/4" |
| Construction | Welded |
| Finished Bore Size | 1 1/2" |
| For Chain Number | 140 |
| For Chain Pitch | 1 3/4" |
| Hub Configuration | B |
| Hub Outside Dia. | 6 1/4" |
| Individually Packaged | No |
| Length Through Bore | 3" |
| Material | Steel |
| Max. Bore Size | 4 1/4" |
| Min. Bore Size | 1 1/2" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 28 |
| Outside Dia. | 16.582" |
| Pitch Dia. | 15.63" |
| Single Strand Tooth Thickness | 0.924" |
| Storage Dimension Height | 3" |
| Storage Dimension Length | 16.58" |
| Storage Dimension Width | 16.58" |
| Weight | 64.61 lbs. |
| Ship weight (kg) | 27.99 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 42.11 |
| Ship width (cm) | 42.11 |
