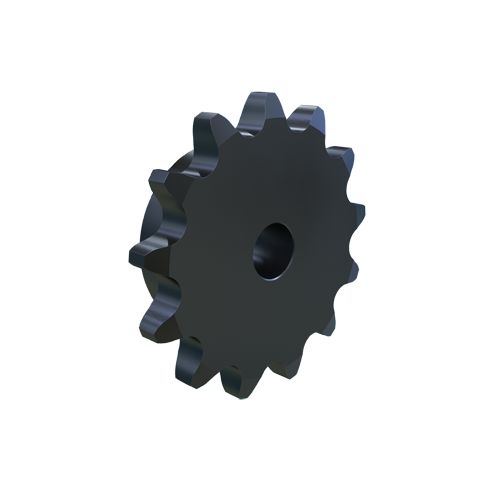

MARTIN SPROCKET 140B13 Sprocket, 140 Chain, 13 Teeth, 7.313 Inch Pitch Dia., 8.150 Inch O.D., Steel
Get it by Tuesday, Jun 17
€384.32 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 140 |
| Chain Pitch | 1 3/4" |
| Construction | Solid |
| Finished Bore Size | 1 1/2" |
| For Chain Number | 140 |
| For Chain Pitch | 1 3/4" |
| Hub Configuration | B |
| Hub Outside Dia. | 5 5/16" |
| Individually Packaged | No |
| Length Through Bore | 2 3/8" |
| Material | Steel |
| Max. Bore Size | 3 9/16" |
| Min. Bore Size | 1 1/2" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 13 |
| Outside Dia. | 8.15" |
| Pitch Dia. | 7 5/16" |
| Single Strand Tooth Thickness | 0.924" |
| Storage Dimension Height | 2 3/8" |
| Storage Dimension Length | 8.15" |
| Storage Dimension Width | 8.15" |
| Weight | 18.02 lbs. |
| Ship weight (kg) | 8.51 |
| Ship height (cm) | 6.05 |
| Ship length (cm) | 20.7 |
| Ship width (cm) | 20.7 |
