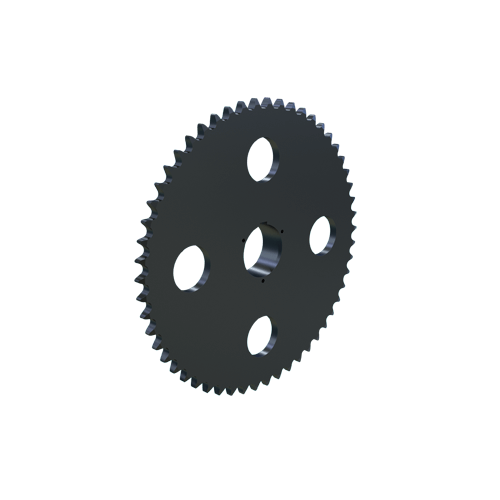

MARTIN SPROCKET 100R54 Sprocket, 100 Chain, 54 Teeth, 21.498 Inch Pitch Dia., 22.212 Inch O.D., Steel
Get it by Tuesday, Jun 17
€975.92 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | R1 |
| Chain Number | 100 |
| Chain Pitch | 1 1/4" |
| Construction | Welded With Lightening Holes |
| For Chain Number | 100 |
| For Chain Pitch | 1 1/4" |
| Hub Configuration | B |
| Hub Outside Dia. | 5 1/2" |
| Individually Packaged | No |
| Keyway Size | 3/4" |
| Length Through Bore | 2" |
| Material | Steel |
| Max. Bore Size | 3 3/4" |
| Min. Bore Size | 1 1/8" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 54 |
| Outside Dia. | 22.212" |
| Pitch Dia. | 21.498" |
| Single Strand Tooth Thickness | 0.692" |
| Storage Dimension Height | 2" |
| Storage Dimension Length | 22.212" |
| Storage Dimension Width | 22.212" |
| Weight | 63 lbs. |
| Ship weight (kg) | 28.35 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 56.41 |
| Ship width (cm) | 56.41 |
