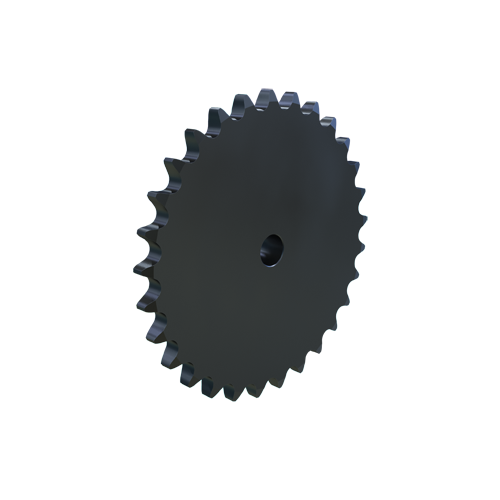

MARTIN SPROCKET 100B29 Roller Chain Sprocket, 100 Chain, Stock Bore, 29 Teeth, 11.561 Inch Pitch Dia., Steel
Get it by Tuesday, Jun 17
€308.22 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 100 |
| Chain Pitch | 1 1/4" |
| Construction | Welded |
| Finished Bore Size | 1 1/4" |
| For Chain Number | 100 |
| For Chain Pitch | 1 1/4" |
| Hub Configuration | B |
| Hub Outside Dia. | 5" |
| Individually Packaged | No |
| Length Through Bore | 2" |
| Material | Steel |
| Max. Bore Size | 3 5/16" |
| Min. Bore Size | 1 1/4" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 29 |
| Outside Dia. | 12.244" |
| Pitch Dia. | 11.5613" |
| Single Strand Tooth Thickness | 0.692" |
| Storage Dimension Height | 2" |
| Storage Dimension Length | 12 6/25" |
| Storage Dimension Width | 12 6/25" |
| Weight | 26.12 lbs. |
| Ship weight (kg) | 11.75 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 31.09 |
| Ship width (cm) | 31.09 |
