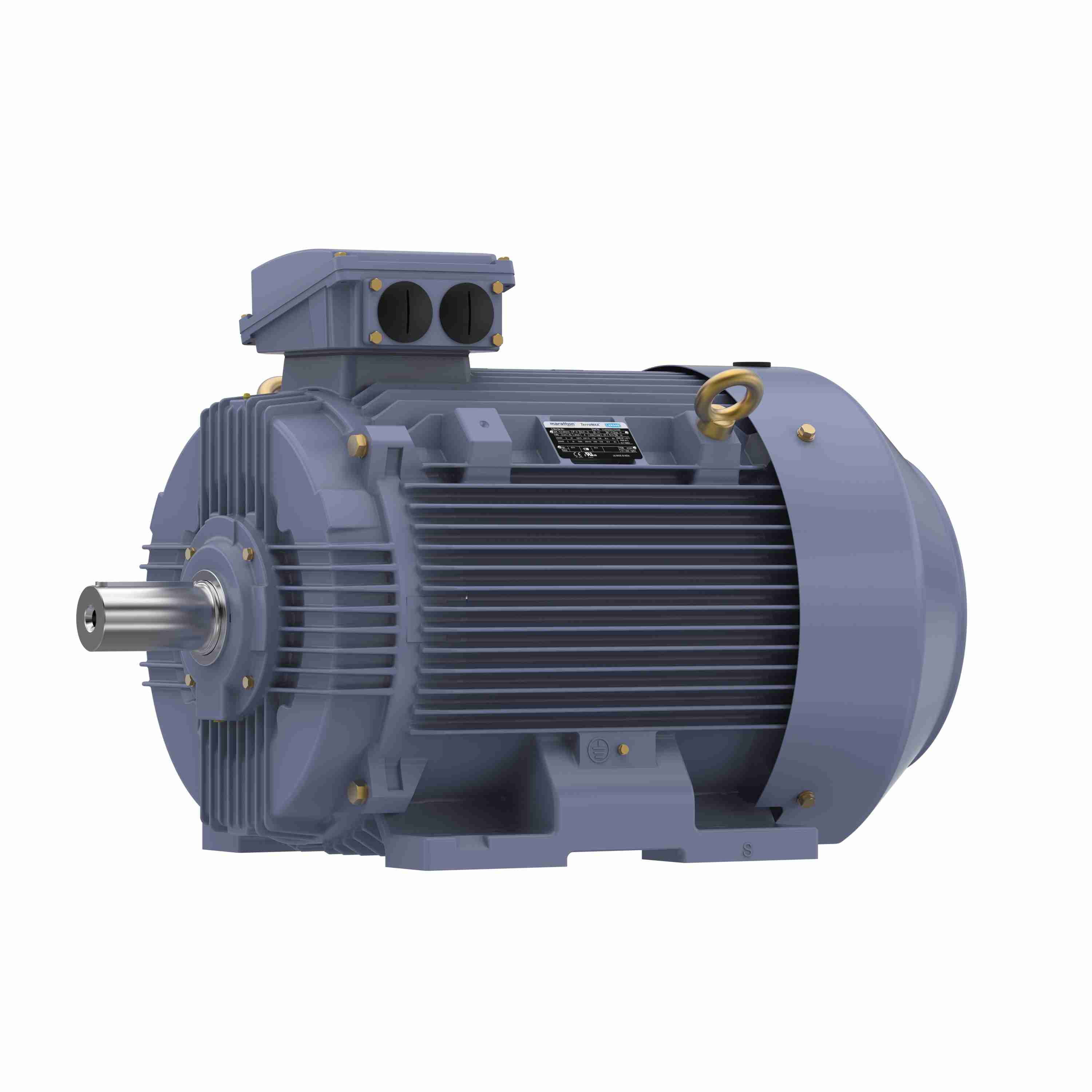

| Item | General Purpose Motor |
| Bearings | Ball |
| Duty Cycle | Continuous |
| Frame | 280M |
| Frame Material | Cast Iron |
| Full Load Amps | 174/87A |
| HP | 75 |
| Hz | 50/60 Hz |
| Inverter Rated | Yes |
| Length Less Shaft | 971 mm |
| Max. Ambient Temp. | 40 Deg. C |
| Motor Application | General Application |
| Motor Design | 3 phase |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Nameplate RPM | 1190 |
| NEMA Design | N |
| Nominal Efficiency | 94.5% |
| Number of Speeds | 1 |
| Overall Length | 1111 mm |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 75 mm |
| Shaft Length | 140 mm |
| Voltage | 230/460V AC |
| Warranty | 1 yr. |
| Ship weight (kg) | 673.65 |
| Ship height (cm) | 95 |
| Ship length (cm) | 128.98 |
| Ship width (cm) | 73 |
| Country of Origin | India |
| Product | Model | Motor Thermal Protection | Max. Ambient Temp. | Frame | Full Load Amps | HP | Hz | Inverter Rated | Length Less Shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
182TTFBD6079 | None | 40 Degrees C | 182TCV | 4.8/2.4 | 1.5 | 50/60 | No | 12.875" | €1,620.11 | |
 |
056C64DRS40002A1 | Auto | 40 Deg. C | 56 | 7.7/4.7A | 1/2 | 50/60 Hz | No | 9 1/2" | €879.45 | |
 |
213TTDBD6026 | - | - | - | - | - | - | - | - | €1,517.11 | |
 |
449TTFCD6027 | None | 40 Deg. C | 447/9T | 341A | 300 | 50/60 Hz | - | 43 3/8" | €34,703.48 | |
 |
TCA0032AE231GAA009 | None | 40 Deg. C | 100L | 10.4/5.2A | 4 | 60 Hz | Yes | 338 mm | €1,301.91 | |
|
TCA0042AE231GAA009 | None | 40 Deg. C | 112M | 13.8/6.9A | 5 1/2 | 60 Hz | Yes | 339 mm | €1,115.13 | |
 |
TCA0111AE211GAA009 | None | 40 Deg. C | 160M | 34/16.9A | 15 | 50/60 Hz | Yes | 512 mm | €2,933.40 |
