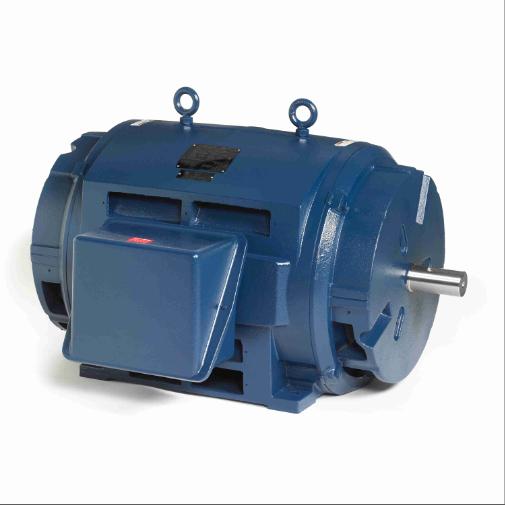

| Item | General Purpose Motor |
| Ambient Temp. | 50°C |
| Bearing Type | Ball |
| Body Dia. | 24 1/2" |
| Capacitor Required | No |
| Conduit Box Position | F1, F2 |
| Duty Cycle | Continuous |
| Efficiency | 95.8% |
| Frame | 449TS |
| Frame Material | Cast Iron |
| Frequency | 50/60 Hz |
| Full Load Amps | 546A |
| Height | 26 1/2" |
| Hp | 500 hp |
| Includes | Conduit Box |
| Insulation Class | Class F |
| Inverter Rated | No |
| Length Less Shaft | 39 9/16" |
| Motor Application | Fire Pump , Pump |
| Motor Bearings | Ball |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Fire Pump |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3575 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 95.8% |
| Number Of Speeds | 1 |
| Overall Height | 26 1/2" |
| Overall Length | 44 9/16" |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 2 3/8" |
| Shaft Length | 5 1/16" |
| Shaft Type | Keyed |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 460V AC |
| Hz | 50/60 Hz |
| Ins. Class | Class F |
| Max. Ambient Temp. | 50°C |
| Motor Design | 3-Phase |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | None |
| Standards | CE, CSA, IP 12, UL |
| Weight | 2620 lbs. |
| Ship weight (kg) | 1179 |
| Ship height (cm) | 79.2 |
| Ship length (cm) | 142.24 |
| Ship width (cm) | 116.84 |
| HS code | 8501513040 |
| Country of Origin | US |
| Product | Model | Assembly | Enclosure | Frame | Frame Material | Full Load Amps | HP | Hz | Insulation Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
184TTDW16038 | - | - | 184T | Rolled Steel | 13.6-12.6/6.3 | 5 | 50/60 | F | €1,153.82 | |
 |
449TSTDN16005 | - | - | 449TS | Cast Iron | 546 | 500 | 50/60 | H | €50,586.34 | |
 |
254TTDC6003 | F1 (F2 Modification Available) | DP | 254T | - | 18.4 | 20 | 60 | F | €2,199.04 | |
 |
213TTDC6079 | F1 ONLY | DP | 213T | - | 3.6 | 3 | 60 | F | €1,392.12 |
