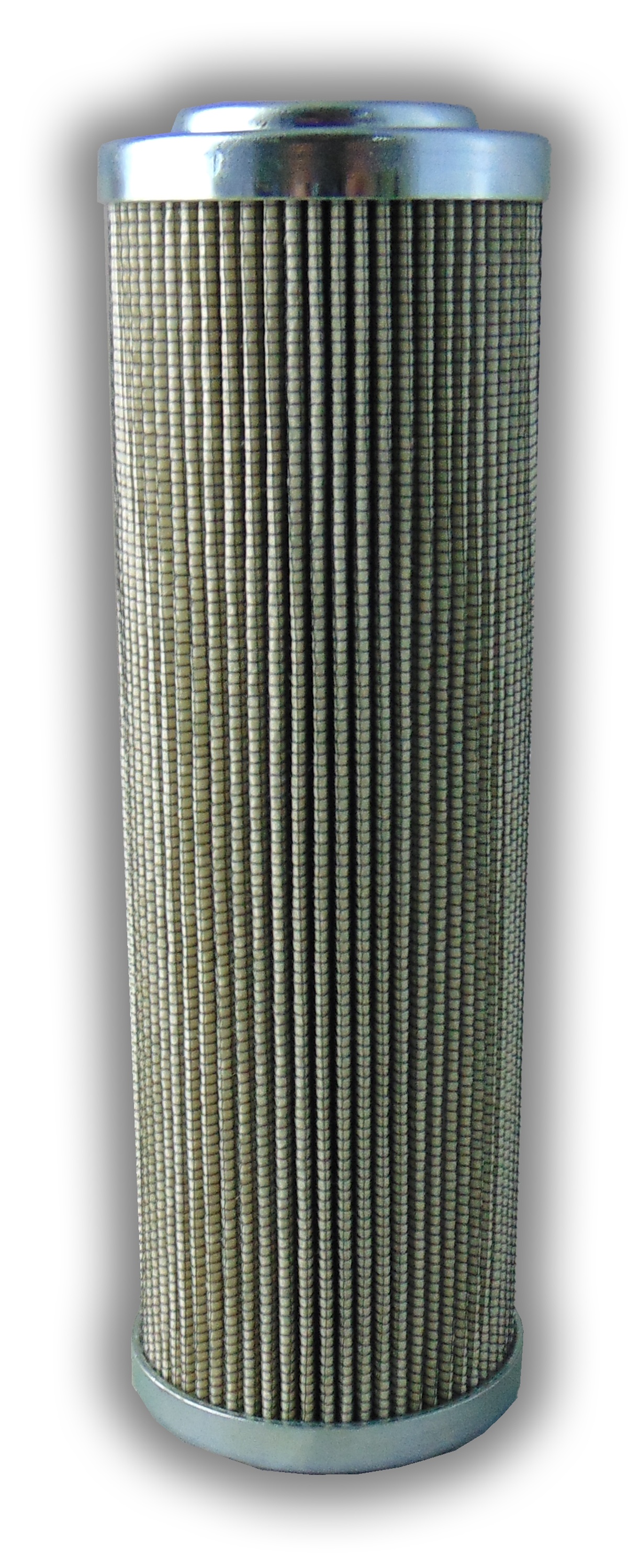

MAIN FILTER INC. MF0060171 DHD240D05B Hydraulic Filter, Cellulose, 5 Micron Rating, Viton Seal, 7.4 Inch Height
Request a Quote
Payment
Payment
| Item | Hydraulic Filter |
| Bottom O.d. | 2.362" |
| Capacity | 9.36g |
| Collapse Pressure | 435 psi |
| Cracking Pressure | 435 psi |
| Filter Media | Cellulose |
| Filter Rating | 5 µm |
| Filter Size | 234 sq. in. |
| Flow Direction | Outside In |
| Flow Type | Outside In |
| Fluid Type | HL/HM/HV/HH |
| Gasket Material | Viton |
| Height | 7 2/5" |
| Max. Operating Temp. | 248°F |
| Min. Operating Temp. | -13°F |
| Seal Material | Viton |
| Seal Type | Viton |
| Top I.d. | 1.347" |
| Top O.d. | 2.362" |
| Product | Model | Bottom I.d. | Bottom O.d. | Capacity | Filter Size | Height | Top I.d. | Top O.d. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
MF0429501 | 1.898" | 3.032" | 18.91 | 473 Sq. Inch | 10.82" | - | 3.032" | - | RFQ
|
|
MF0879239 | - | 2.362" | 9.36 | 234 Sq. Inch | 7.4" | 1.347" | 2.362" | - | RFQ
|
 |
MF0597761 | - | 2.362" | 6.26 | 156 Sq. Inch | 5mm | 1.346" | 2.362" | - | RFQ
|
|
MF0597810 | - | 2.362" | 9.36 | 234 Sq. Inch | 7.4" | 1.347" | 2.362" | - | RFQ
|
 |
MF0604519 | - | 1.63" | 2.04 | 51 Sq. Inch | 3.78" | - | 1.63" | - | RFQ
|
|
MF0606751 | - | 2.362" | 6.26 | 156 Sq. Inch | 5mm | 1.346" | 2.362" | - | RFQ
|
|
MF0606778 | - | 2.362" | 9.36 | 234 Sq. Inch | 7.4" | 1.347" | 2.362" | - | RFQ
|
