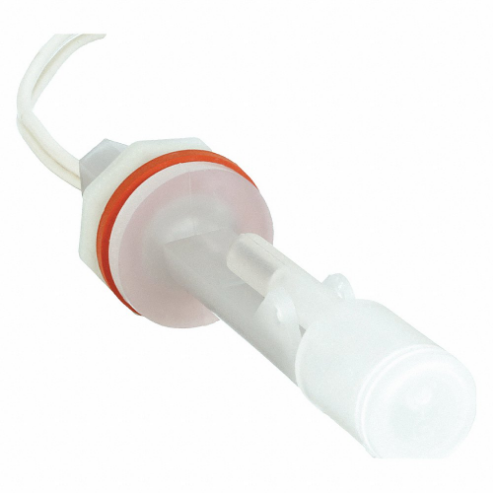

| Item | Liquid Level Switch |
| Body Material | Polypropylene |
| Contact Form | SPST |
| Float Dia. | 1" |
| Float Length | 1 3/4" |
| Float Material | Polypropylene |
| Float Specific Gravity | 0.6 |
| Float Switch Float Material | Polypropylene |
| Gauge | 22 ga. |
| Max. Current | 0.28A |
| Max. Pressure | 100 psi |
| Max. Voltage | 240V |
| Mounting | Horizontal , Side |
| Mounting Position | Horizontal |
| Operating Temp. | 221°F |
| Overall Length | 4.02" |
| Stem Length | 2 22/25" , 2 24/25" |
| Stem Material | Polypropylene |
| Switch Action | Select |
| Switch Function | Select |
| Width | 3/5" |
| Components Included | Float |
| Current Rating | 0.28A |
| Display Qty | 1 |
| Electrical Connection Type | Lead Wires |
| Float Diameter | 1" |
| Minimum Media Specific Gravity | 0.63 xg |
| Operating Temperature - Maximum | 221°F |
| Overall Width | 3/5" |
| Product Type | Alternator Closed Liquid Level Switch |
| Proof Pressure | 100 psi |
| Series | M8790 Series |
| Standards | CE, CSA, NSF, UL LISTED |
| Stem Thread Size | 5/8"-11 UNC |
| Voltage Rating - Maximum | 120V DC/240V AC |
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 8.66 |
| Ship length (cm) | 10.21 |
| Ship width (cm) | 1.52 |
| HS code | 8536509065 |
| Country of Origin | US |
| Product | Model | Body Material | Conduit Size | Contact Form | Electrical Connections | Float Dia. | Float Material | Height | Max. Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M8800 | Polypropylene | 1/4" | SPST | 22 ga. MTW Coated 24" Leads | 1.5" | Polypropylene | 3.41" | 100 psi | €68.59 | |
 |
M4300 | Brass | 1/4" | SPST | 22 ga. MTW Coated 24" Leads | 1.25" | Buna N | 3.38" | 150 psi | €78.63 | |
 |
M8000 | Polypropylene | 1/8" | SPST | 22 ga. MTW Coated 24" Leads | 1" | Polypropylene | 2.25" | 100 psi | €20.86 | |
 |
M8700 | Polypropylene | 1/2" x 1/2" | SPST | 22 ga. MTW Coated 24" Leads | 0.65" | Polypropylene | - | 100 psi | €19.67 | |
 |
M4010 | Brass | 3/8-20" | SPST | 22 ga. PTFE Coated 24" Leads | 1" | Buna N | 2.96" | 100 psi | €72.17 | |
 |
M5900 | 316 Stainless Steel | 1/2" x 1" | SPDT | 22 ga. PTFE Coated 24" Leads | 0.63" | 316 SS | - | 300 psi | €212.26 | |
 |
M5910 | 316 Stainless Steel | 1/4" x 1/2" | SPDT | 22 ga. PTFE Coated 24" Leads | 0.63" | 316 SS | - | 300 psi | €199.62 |
