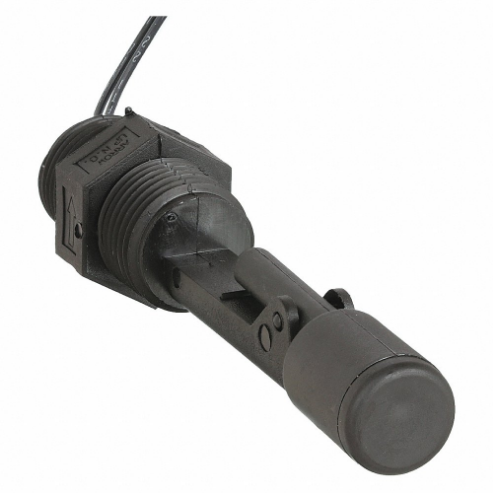

MADISON M7700 Level Switch 1/2 Inch x 1/2 Inch Npt Selectable Pbt

Name: MADISON M7700 Level Switch 12 Inch x 12 Inch Npt Selectable Pbt
Brand: MADISON
SKU: AE2NBY
Price: 20.21 EUR
Availability: InStock

In Stock

Item: AE2NBY Model: M7700Cross Ref: 4YM36

Check Availability

See variants (24)

Get it by May 24, Friday

Product available for flat shipping. Flat shipping price of €9,00 on transactions of value €99,00 or more and aggregate weight below 10 pounds.

Delivery Options:

€20.21 /unit

Add To Cart

Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

Item	Liquid Level Switch
Body Material	PBT
Conduit Size	1/2" x 1/2"
Contact Form	SPST
Electrical Connections	22 ga. PTFE Coated 24" Leads
Float Dia.	0.65"
Float Length	2.11"
Float Material	PBT
Float Specific Gravity	0.70
Max. Current	0.28A
Max. Pressure	100 psi
Max. Voltage	240
Mounting	Horizontal
Operating Temp. Range	149 Degrees F Max.
Overall Length	2.75"
Stem Length	2.75"
Stem Material	PBT
Switch Function	Selectable
Tank Connection Size	1/2" x 1/2" NPT
VA Rating	30
Width	0.6"

Shipping Info:

Ship height (cm)	1.27
Ship length (cm)	5.84
Ship width (cm)	11.18
HS code	9026106000
Country of Origin	US

Product Variants

Model	Max. Pressure	Body Material	Conduit Size	Mounting	Operating Temp. Range	Overall Length	Stem Length	Stem Material	Price
M8800	100 psi	Polypropylene	1/4"	Vertical	221 Degrees F Max.	3.380"	2.63"	Polypropylene	€88.07
M4300	150 psi	Brass	1/4"	Vertical	221 Degrees F Max.	3.380"	2.63"	Brass	€69.89
M8000	100 psi	Polypropylene	1/8"	Vertical	221 Degrees F Max.	2.25"	1.63"	Polypropylene	€18.72
M8700	100 psi	Polypropylene	1/2" x 1/2"	Horizontal	221 Degrees F Max.	2.75"	2.75"	Polypropylene	€17.35
M4010	100 psi	Brass	3/8-20"	Horizontal	221 Degrees F Max.	2.96"	2.96"	Brass	€68.29
M5900	300 psi	316 Stainless Steel	1/2" x 1"	Horizontal	392 Degrees F Max.	4.6"	4.6"	316 SS	€210.53
M5910	300 psi	316 Stainless Steel	1/4" x 1/2"	Horizontal	392 Degrees F Max.	4.6"	4.6"	316 SS	€201.34
