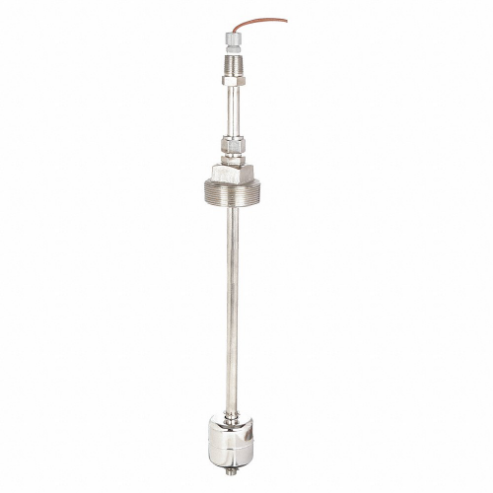

| Item | Liquid Level Switch |
| Body Material | Stainless Steel |
| Conduit Size | 2" |
| Contact Form | SPST |
| Float Dia. | 2.13" |
| Float Length | 2" |
| Float Material | Stainless Steel |
| Float Specific Gravity | 0.55 |
| Float Switch Float Material | Stainless Steel |
| Gauge | 22 ga. |
| Grade | Grade 316 |
| Height | 12" |
| Max. Current | 0.5A |
| Max. Pressure | 200 psi |
| Max. Voltage | 240V |
| Mounting | Vertical Adjustable , Vertical Open Tank |
| Mounting Position | Vertical And Adjustable |
| Operating Temp. | 392°F |
| Overall Length | 12" |
| Stem Length | 10 1/2" |
| Stem Material | Stainless Steel |
| Switch Action | Select |
| Switch Function | Select |
| Width | 1 1/4" |
| Components Included | Float |
| Current Rating | 0.5A |
| Display Qty | 1 |
| Electrical Connection Type | Lead Wires |
| Features | Adjustable Switch Depth or Height, Field Selectable NO or NC, Low Level Indication |
| Float Diameter | 2.13" |
| Minimum Media Specific Gravity | 0.69 xg |
| Mounting Style | Open Tank Vertical |
| Operating Temperature - Maximum | 392°F |
| Overall Height | 12" |
| Overall Width | 1 1/4" |
| Product Type | Alternator Closed Liquid Level Switch |
| Proof Pressure | 105 psi |
| Standards | CE, CSA, UL LISTED |
| Stem Thread Size | 2" NPT |
| Voltage Rating - Maximum | 120V DC/240V AC |
| Ship weight (kg) | 0.86 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 3.18 |
| HS code | 9032896060 |
| Country of Origin | US |
| Product | Model | Body Material | Float Dia. | Float Material | Height | Max. Pressure | Operating Temp. Range | Overall Length | Stem Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M4302-7807-6 | Brass | 1.25" | Buna N | 72" | 150 psi | 221 Degrees F Max. | 72" | 70.5" | €189.65 | RFQ
|
 |
M5602-7808-6 | 316 Stainless Steel | 2.13" | 316 SS | 72" | 200 psi | 392 Degrees F Max. | 72" | 70.5" | €312.18 | RFQ
|
