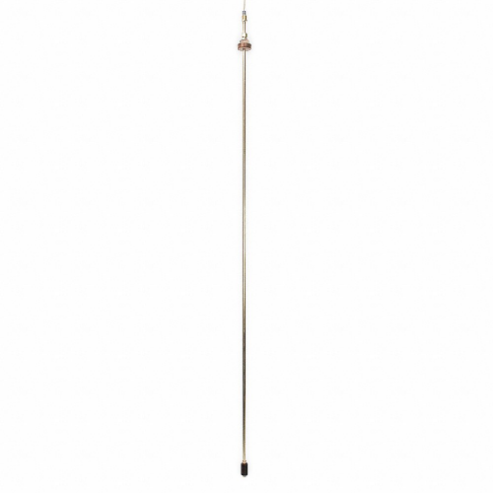

MADISON M4302-7807-6 Liquid Level Switch 2 Inch Npt Selectable Buna N
Due to weight and dimension restrictions, please request a shipping quote
€189.65 /unit
Request a Quote
Payment
Due to weight and dimension restrictions, please request a shipping quote
Payment
| Item | Liquid Level Switch |
| Body Material | Brass |
| Conduit Size | 2" |
| Contact Form | SPST |
| Float Dia. | 1 1/4" |
| Float Length | 2" |
| Float Material | Buna N |
| Float Specific Gravity | 0.45 |
| Gauge | 22 ga. |
| Height | 72" |
| Max. Current | 0.5A |
| Max. Pressure | 150 psi |
| Max. Voltage | 240V |
| Mounting | Vertical Adjustable , Vertical Open Tank |
| Mounting Position | Vertical And Adjustable |
| Operating Temp. | 221°F |
| Overall Length | 72" |
| Stem Length | 70 1/2" |
| Stem Material | Brass |
| Switch Action | Select |
| Switch Function | Select |
| Width | 7" |
| Components Included | Float |
| Current Rating | 0.5A |
| Display Qty | 1 |
| Float Diameter | 1 1/4" |
| Minimum Media Specific Gravity | 0.56 xg |
| Mounting Style | Open Tank Vertical |
| Overall Height | 72" |
| Overall Width | 7" |
| Proof Pressure | 150 psi |
| Standards | ABS, CE, CSA, UL LISTED |
| Stem Thread Size | 2" NPT |
| Voltage Rating - Maximum | 240V |
| Ship weight (kg) | 4.11 |
| Ship height (cm) | 5.41 |
| Ship length (cm) | 182.88 |
| Ship width (cm) | 5.41 |
| HS code | 9032896060 |
| Country of Origin | US |
| Product | Model | Body Material | Float Dia. | Float Material | Height | Max. Pressure | Operating Temp. Range | Overall Length | Stem Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M5602-7808-1 | 316 Stainless Steel | 2.13" | 316 SS | 12" | 200 psi | 392 Degrees F Max. | 12" | 10.5" | €297.62 | |
 |
M5602-7808-6 | 316 Stainless Steel | 2.13" | 316 SS | 72" | 200 psi | 392 Degrees F Max. | 72" | 70.5" | €312.18 | RFQ
|
