| Item | Liquid Level Switch |
| Body Material | Stainless Steel |
| Conduit Size | 1/4" |
| Contact Form | SPST |
| Finish | PTFE Coated |
| Float Dia. | 2.13" |
| Float Length | 2" |
| Float Material | Stainless Steel |
| Float Specific Gravity | 0.55 |
| Float Switch Float Material | Stainless Steel |
| Gauge | 22 ga. |
| Grade | Grade 316 |
| Height | 3 13/25" |
| Max. Current | 0.5A |
| Max. Pressure | 200 psi |
| Max. Voltage | 240V |
| Mounting | Vertical , Vertical Open Tank |
| Mounting Position | Vertical |
| Operating Temp. | 392°F |
| Overall Length | 3.38" |
| Stem Length | 2.63" |
| Stem Material | Stainless Steel |
| Switch Action | Select |
| Switch Function | Select |
| Width | 2.13" |
| Components Included | Float |
| Current Rating | 0.5A |
| Display Qty | 1 |
| Electrical Connection Type | Lead Wires |
| Float Diameter | 2.13" |
| Minimum Media Specific Gravity | 0.63 xg |
| Mounting Style | Open Tank Vertical |
| Operating Temperature - Maximum | 392°F |
| Overall Height | 3 13/25" |
| Overall Width | 2.13" |
| Product Type | Closed Liquid Level Switch |
| Proof Pressure | 200 psi |
| Series | M5600 Series |
| Standards | CE, CSA, NSF, UL LISTED |
| Stem Thread Size | 1/4" NPT |
| Voltage Rating - Maximum | 120V DC/240V AC |
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 8.94 |
| Ship length (cm) | 8.59 |
| Ship width (cm) | 5.41 |
| HS code | 9026106000 |
| Country of Origin | US |

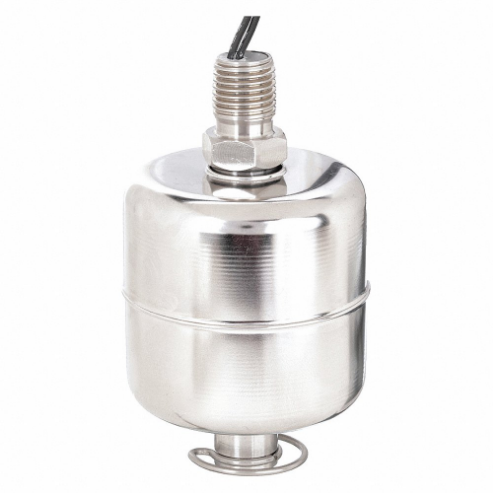

Madison M5600 liquid level switch is used in industrial settings, ensuring precise liquid level control while providing a reliable and durable solution to monitor and regulate liquid levels.
A. This switch has a maximum pressure tolerance of 200 psi.
A. Use a mild cleaning solution and a soft cloth to wipe the switch clean. Avoid abrasive materials or harsh chemicals.
A. Regular inspections are recommended to ensure proper functioning. Maintenance may be necessary if wear or damage is detected.
A. Ensure proper alignment, secure electrical connections and confirm compatibility with the liquid's properties and temperature.
| Product | Model | Body Material | Conduit Size | Electrical Connections | Float Dia. | Float Material | Height | Max. Pressure | Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M3326-SM | Polypropylene | 3/8-16" | PTFE Jacketed Wire Leads | 0.78" | Polypropylene | 1.85" | 50 psi | Horizontal | €39.05 | |
 |
M8790-14/4184 | Polypropylene | 5/8-11" | 22 ga. MTW Coated 24" Leads | 1" | Polypropylene | - | 100 psi | Horizontal | €45.43 | |
 |
M4065 | 304 Stainless Steel | 1.5" | 22 ga. MTW 24" | 1.5" | 304 SS | 10.25" | 100 psi | Horizontal | €614.06 | |
 |
M3727 | Stainless Steel | 1/2" x 1/4" | 22 ga. PTFE Coated 24" Leads | 0.65" | Stainless Steel | - | 300 psi | Horizontal | €174.09 | |
 |
MS8010 | Stainless Steel | 1/8" | 22 ga. PTFE Coated 24" Leads | 1" | Polypropylene | 2.96" | 100 psi | Horizontal | €80.28 |
