MADISON M3326-SM Liquid Level Switch 3/8-16 Unc Selectable Polypropylene | AA3FYQ 11K182

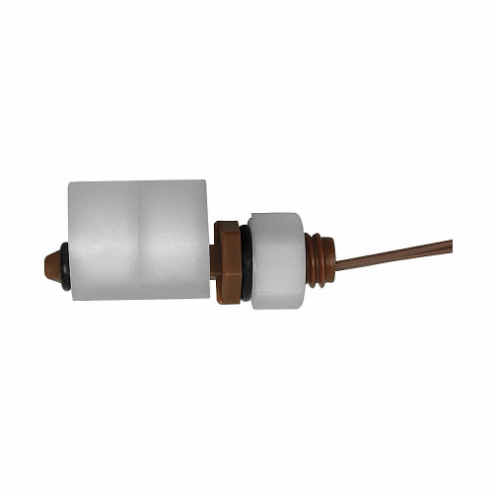

MADISON M3326-SM Liquid Level Switch 3/8-16 Unc Selectable Polypropylene

In Stock
Item: AA3FYQ Model: M3326-SMCross Ref: 11K182
Check Availability
See variants (5)

Get it by May 24, Friday

Product available for flat shipping. Flat shipping price of €9,00 on transactions of value €99,00 or more and aggregate weight below 10 pounds.

Delivery Options:

Int. Economy (6-10 days)
  • Int. Express (5-7 days) ¥3,750
  • Ex-Works Pickup Free
  • Ex-works Pickup
€31.68 /unit
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemLiquid Level Switch
Body MaterialPolypropylene
Conduit Size3/8-16"
Contact FormSPST
Electrical ConnectionsPTFE Jacketed Wire Leads
Float Dia.0.78"
Float Length0.85"
Float MaterialPolypropylene
Float Specific Gravity0.80
Height1.85"
Max. Current0.12A
Max. Pressure50 psi
Max. Voltage240
MountingHorizontal
Operating Temp. Range221 Degrees F Max.
Overall Length1.85"
Stem Length1.24"
Stem MaterialPolypropylene
Switch FunctionSelectable
Tank Connection Size3/8-16 UNC
VA Rating15
Width0.78"

Shipping Info:

Ship weight (kg) 0.02
Ship height (cm)2.54
Ship length (cm)7.62
Ship width (cm)5.08
HS code9032896060
Country of OriginUS

Product Variants

ProductModelMountingBody MaterialConduit SizeOperating Temp. RangeOverall LengthStem LengthStem MaterialVA RatingPrice
MADISON M5600 Liquid Level Switch 1/4 Inch Npt Selectable 316 Stainless Steel | AB8WLB 2A551 M5600Vertical316 Stainless Steel1/4"392 Degrees F Max.3.380"2.63"316 SS60€93.79
MADISON M8790-14/4184 Liquid Level Switch 5/8-11 Unc Selectable Pp | AC4HWR 2ZY83 M8790-14/4184HorizontalPolypropylene5/8-11"221 Degrees F Max.4.02"3.31"Polypropylene30€38.34
MADISON M4065 Liquid Level Switch 1-1/2 Inch Npt Spdt 304 Stainless Steel | AC4HXB 2ZY92 M4065Horizontal304 Stainless Steel1.5"257 Degrees F Max.5.5"5.5"304 SS20€807.78
MADISON M3727 Level Switch 1/2 Inch x 1/4 Inch Npt Selectable Ss | AE3LRE 5DYC8 M3727HorizontalStainless Steel1/2" x 1/4"392 Degrees F Max.5"5"Stainless Steel30€169.09
MADISON MS8010 Liquid Level Switch 1/8 Inch Npt Selectable Pp | AE3LRH 5DYD2 MS8010HorizontalStainless Steel1/8"221 Degrees F Max.2.96"2.96"Stainless Steel30€86.69
