Get it by Tuesday, Jun 17
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
Payment

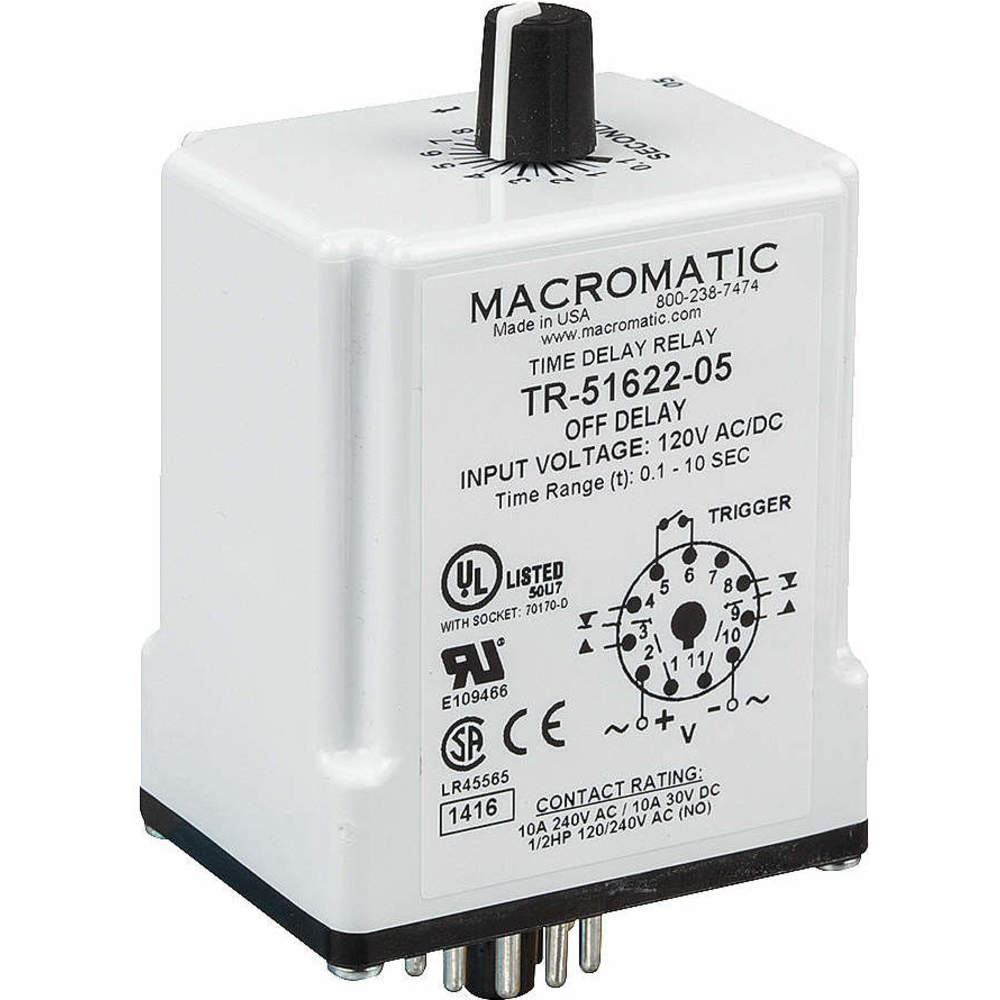

| Item | Time Delay Relay |
| Adjustment Interface | Analog |
| Adjustment Method | Potentiometer |
| Amps Rating | 10A |
| Base Shape | Octal |
| Base Type | Octal |
| Base Type - Plug In Relay | Octal |
| Body Depth | 1.7" , 2.9" |
| Body Height | 1.7" , 2.9" |
| Body Width | 2 2/5" , 2.3" |
| Coil Rating | 2 VA |
| Coil Volts | 24V AC/DC |
| Contact Amp Rating | 10A |
| Contact Form | DPDT |
| Contact Material | Silver Nickel |
| Delay Function Type | Off Delay |
| Electrical Connection | Socket |
| Electrical Connection Type | Pin |
| Environmental Protection | Enclosed |
| Flat Pin Width | Not Applicable |
| Frequency | 50/60 Hz |
| Function | Off Delay |
| Load | 2 VA |
| Max. Time Setting | 10 sec. |
| Max. Time Setting - Timer | 10 sec. |
| Min. Time Setting | 0.1 sec. |
| Min. Time Setting - Timer | 0.1 sec. |
| Minimum Time Setting | 0.1 sec. |
| Mounting | Plug In |
| Mounting - Relay | Plug In |
| No. Of Pins | 11 |
| No. Of Pins - Relay | 11 |
| Number Of Delay Functions | 1 |
| Number Of Pins | 11 |
| Operating Functions | 2 |
| Overall Depth | 3 1/2" |
| Overall Height | 3.1" |
| Pins | 11 |
| Power Consumption | 2 VA |
| Relay Mounting Style | Socket |
| Reset Time | 0.1 sec. |
| Resistive Contact Amp Rating | 10A |
| Sealing | Enclosed |
| Socket Code | A , B |
| Status Indicator | No |
| Timing Adjustment | Analog |
| Timing Relay Functionality | Off Delay |
| Compatible With Grainger Part Number | 1EGP2, 1EGP4, 6X156 |
| Contact Rating (ac) | 10A @ 240V |
| Contact Rating (dc) | 10A @ 30V |
| Current Rating | 10A |
| Delay Function | Off Delay |
| Electrical Operating Durability | 100000 |
| Input Voltage | 24V AC/DC |
| Ip Rating | IP20 |
| Maximum Operating Temperature | 122°F |
| Maximum Time Setting | 10 sec. |
| Mechanical Operating Durability | 10000000 |
| Minimum Operating Temperature | -18°F |
| Number Of Pins/terminals | 11 |
| Operating Time Accuracy | +0% -50% (Minimum Setting (Adjustable)), +2% 50ms (Fixed), +5% -0% (Maximum Setting (Adjustable)) |
| Reset Method | Time-Limit Reset |
| Standards | CE CERTIFIED, CSA CERTIFIED, UL LISTED, UL SOCKET |
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 4.32 |
| Ship length (cm) | 7.37 |
| Ship width (cm) | 5.84 |
| HS code | 8536490075 |
| Country of Origin | US |
| Product | Model | Coil Volts | Function | Input Voltage | Max. Time Setting | Min. Time Setting | Pins | Socket | Voltage (ac) | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TR-50222-04 | 120 VAC | On Delay | - | 5 sec. | 0.05 sec. | 8 | 5X852, 1EGP3, 1EGP5 | - | €65.66 | |
 |
TR-50222-10 | 120 VAC | On Delay | - | 180 sec. | 1.8 sec. | 8 | 5X852, 1EGP3, 1EGP5 | - | €43.06 | |
 |
TR-50222-12 | 120 VAC | On Delay | - | 5 min. | 3 sec. | 8 | 5X852, 1EGP3, 1EGP5 | - | €44.27 | |
 |
TR-50222 | 120 VAC | On Delay | - | 15 min. | 9 sec. | 8 | 5X852, 1EGP3, 1EGP5 | - | €44.18 | |
 |
TR-50522-05 | 120 VAC | Interval On | - | 10 sec. | 0.1 sec. | 8 | 5X852, 1EGP3, 1EGP5 | - | €45.30 | |
 |
TR-50522-10 | 120 VAC | Interval On | - | 180 sec. | 1.8 sec. | 8 | 5X852, 1EGP3, 1EGP5 | - | €43.94 | |
 |
TR-50522-12 | 120 VAC | Interval On | - | 5 min. | 3 sec. | 8 | 5X852, 1EGP3, 1EGP5 | - | €73.25 |
