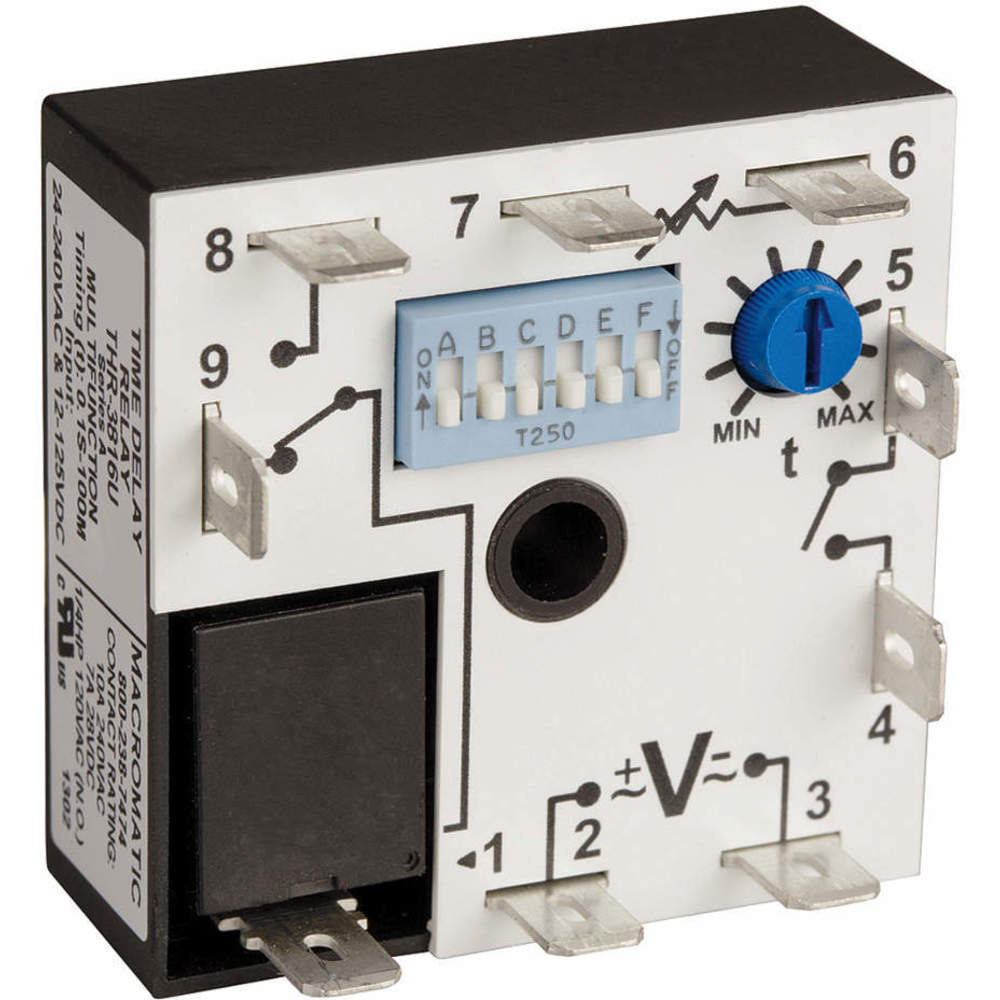

| Item | Encapsulated Timer Relay |
| Adjustment Interface | Analog |
| Adjustment Method | Dip Switch |
| Amps Rating | 24A |
| Base Shape | Square |
| Body Depth | 0.79" , 2" |
| Body Height | 0.79" , 2" |
| Body Width | 2" |
| Contact Amp Rating | 10A |
| Contact Form | SPDT |
| Delay Function Group | Cycle/Flasher, Watchdog |
| Electrical Connection | Screw Terminal |
| Electrical Connection Type | Screw |
| Environmental Protection | Enclosed |
| Function | Flasher (Off 1ST), Flasher (On 1ST), Watchdog, Single Shot Falling Edge , Repeat Cycle Equal On/Off Time, Watchdog, Single Shot Falling Edge |
| Hz | 50/60 Hz |
| Max. Time Setting | 100 min. |
| Min. Time Setting - Timer | 0.1 sec. |
| Minimum Time Setting | 0.1 sec. |
| Mounting | Surface |
| Mounting - Relay | Surface |
| Mounting Style | Surface |
| No. Of Pins | 9 |
| No. Of Pins - Relay | 9 |
| Number Of Delay Functions | 4 |
| Number Of Pins | 9 |
| Output | Relay |
| Overall Depth | 1.14" |
| Overall Height | 1.14" |
| Power Consumption | 2 VA |
| Relay Mounting Style | Surface |
| Resistive Contact Amp Rating | 10A |
| Sealing | Enclosed |
| Status Indicator | No |
| Timer Range | 0.1 sec. to 100 min. |
| Type Of Output | Relay |
| Coil Voltage | 24-240V AC/12-125V DC |
| Contact Rating (ac) | 24A @ 240V AC |
| Contact Rating (dc) | 12A @ 125V DC |
| Current Rating | 24A |
| Delay Function | Flasher OFF 1st, Flasher On 1s, Single Shot Falling Edge, Watchdog |
| Electrical Operating Durability | 100000 |
| Maximum Operating Temperature | 149°F |
| Maximum Time Setting | 100 min. |
| Mechanical Operating Durability | 10000000 |
| Minimum Operating Temperature | -18°F |
| Number Of Pins/terminals | 9 |
| Operating Time Accuracy | +0% -50% (Minimum Setting (Adjustable)), +5% -0% (Maximum Setting (Adjustable)) |
| Reset Method | Time-Limit Reset |
| Standards | UL LISTED |
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 2.01 |
| Ship width (cm) | 5.08 |
| HS code | 8536490075 |
| Country of Origin | US |
