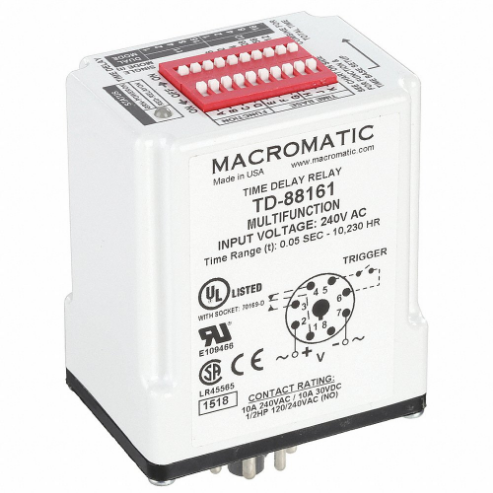

| Item | Time Delay Relay |
| Adjustment Interface | Digital |
| Adjustment Method | Dip Switch |
| Amps Rating | 10A |
| Base Shape | Octal |
| Base Type | Octal |
| Base Type - Plug In Relay | Octal |
| Body Depth | 1.7" , 2.9" |
| Body Height | 1.77" , 2.9" |
| Body Width | 2 2/5" , 2.33" |
| Coil Rating | 2 VA |
| Coil Va Rating | 2 VA |
| Coil Volts | 240V AC |
| Contact Amp Rating | 10A |
| Contact Form | SPDT |
| Contact Material | Silver Nickel |
| Electrical Connection | Socket |
| Electrical Connection Type | Pin |
| Environmental Protection | Enclosed |
| Flat Pin Width | Not Applicable |
| Frequency | 50/60 Hz |
| Function | On Delay, Interval On, Flasher (Off First), Flasher (On First), Off Delay, Single Shot, Watchdog, Single Shot (Trailing Edge), Triggered On Delay, Repeat Cycle (Off First), Repeat Cycle (On First), Delayed Interval, Triggered Delayed Interval, On Delay/Of |
| Max. Time Setting | 1023 hrs. |
| Min. Time Setting | 0.1 sec. , 50 ms |
| Min. Time Setting - Timer | 0.05 sec. |
| Minimum Time Setting | 0.05 sec. |
| Mounting | Plug In |
| Mounting - Relay | Plug In |
| No. Of Functions | 16 |
| No. Of Pins | 8 |
| No. Of Pins - Relay | 8 |
| Number Of Delay Functions | 16 |
| Number Of Functions | 15 |
| Number Of Pins | 8 |
| Overall Depth | 3.03" |
| Overall Height | 3" |
| Pins | 8 |
| Power Consumption | 2 VA |
| Relay Mounting Style | Socket |
| Resistive Contact Amp Rating | 10A |
| Sealing | Enclosed |
| Socket Code | A , B |
| Status Indicator | LED |
| Timing Relay Functionality | Flasher, Interval Delay, Off Delay, On Delay, One Shot, Power Off Delay, Repeat Cycle |
| Coil Voltage | 240V AC |
| Contact Rating (ac) | 10A @ 240V |
| Contact Rating (dc) | 10A @ 30V |
| Current Rating | 10A |
| Delay Function | Multi Function |
| Electrical Operating Durability | 100000 |
| Ip Rating | IP20 |
| Maximum Operating Temperature | 149°F |
| Maximum Time Setting | 10230 hrs. |
| Mechanical Operating Durability | 10000000 |
| Minimum Operating Temperature | -18°F |
| Number Of Pins/terminals | 8 |
| Operating Time Accuracy | +1% +50ms |
| Reset Method | Time-Limit Reset |
| Standards | CE CERTIFIED, CSA CERTIFIED, UL LISTED, UL SOCKET |
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 4.5 |
| Ship length (cm) | 7.37 |
| Ship width (cm) | 5.92 |
| HS code | 8536490080 |
| Country of Origin | US |
| Product | Model | Coil Volts | Input Voltage | Price | |
|---|---|---|---|---|---|
 |
TD-88162 | 120 VAC/DC | - | €74.39 | |
 |
TD-88168 | 24 VAC/DC | - | €84.31 | |
 |
TD-80221-40 | - | 240 VAC | €94.65 | |
 |
TD-80221-41 | - | 240 VAC | €94.65 | |
 |
TD-80221-42 | - | 240 VAC | €94.65 | |
 |
TD-80221-43 | - | 240 VAC | €94.65 | |
 |
TD-80221-44 | - | 240 VAC | €94.65 |
