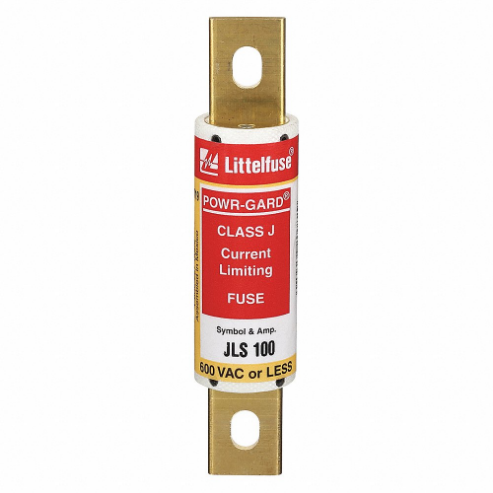

LITTELFUSE JLS100 Fuse, 100A, 600V AC, 4-5/8 Inch Length x 1-1/8 Inch Dia., Blade Body
Get it by Monday, Jun 16
€65.00 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Fuse |
| Ac Voltage Rating | 600V AC |
| Amps | 100A |
| Body Material | Melamine |
| Body Style | Blade |
| Class | J |
| Compatible Fuse Block Series | LFJ |
| Dc Voltage Rating | Not Rated |
| Diameter | 1 1/8" |
| Element | Single |
| Equivalent Brand And Series | Bussmann JKS, Littelfuse JLS, MERSEN A4J Series |
| Equivalent Series | A4J, JKS, JLS |
| Fits Fuse Block Style | Nonrejection |
| Fuse Size | 4 5/8" L x 1 1/8" dia. |
| Interrupt Rating | 200 kA at 600V AC |
| Length | 4 5/8" |
| Series | JLS Series |
| Speed | Fast Acting |
| Standards | CE, CSA CERTIFIED, QPL-W-F-1814, UL 248-8 CLASS J, UL LISTED |
| Visual Indication | Nonindicating |
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 11.75 |
| Ship length (cm) | 2.86 |
| Ship width (cm) | 2.86 |
| Country of Origin | MX |
