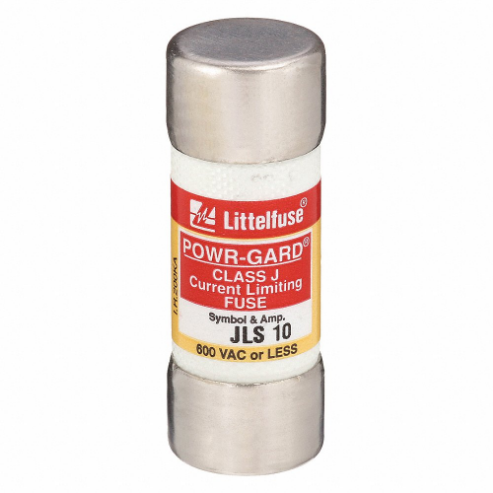

LITTELFUSE JLS010 Fuse, 10A, 600V AC, 2-1/4 Inch Length x 13/16 Inch Dia., Cylindrical Body
Get it by Monday, Jun 16
€23.55 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Fuse |
| Ac Voltage Rating | 600V AC |
| Amps | 10A |
| Body Material | Melamine |
| Body Style | Cylindrical |
| Class | J |
| Compatible Fuse Block Series | LFJ |
| Dc Voltage Rating | Not Rated |
| Diameter | 13/16" |
| Element | Single |
| Equivalent Brand And Series | Bussmann JKS, Littelfuse JLS, MERSEN A4J Series |
| Equivalent Series | A4J, JKS, JLS |
| Fits Fuse Block Style | Nonrejection |
| Fuse Size | 2 1/4" L x 13/16" dia. |
| Interrupt Rating | 200 kA at 600V AC |
| Length | 2 1/4" |
| Series | JLS Series |
| Speed | Fast Acting |
| Standards | CE, CSA CERTIFIED, QPL-W-F-1814, UL 248-8 CLASS J, UL LISTED |
| Visual Indication | Nonindicating |
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 5.72 |
| Ship length (cm) | 2.06 |
| Ship width (cm) | 2.06 |
| Country of Origin | MX |
