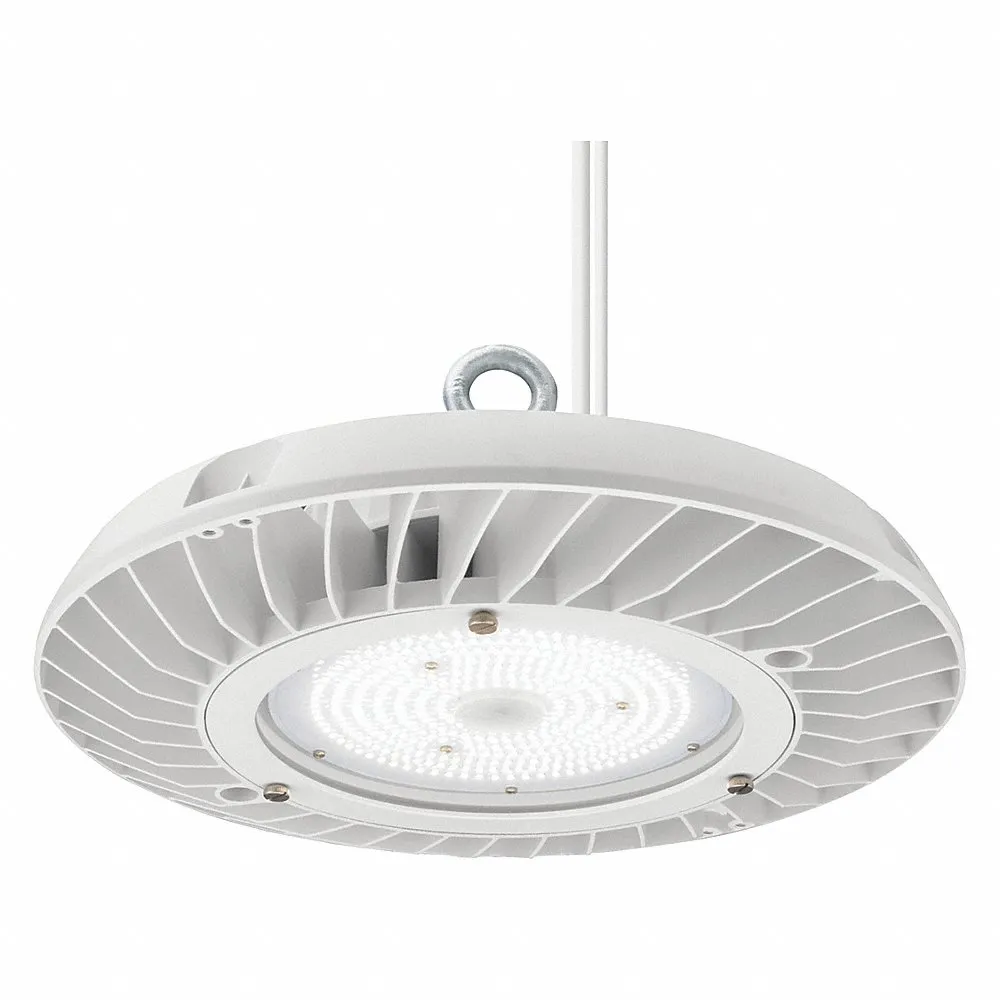

LITHONIA LIGHTING JEBL 24L 40K 80CRI WH LED High Bay, Dimmable, Integrated, 120 to 277V, 699 lm
Get it by Monday, Jun 16
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | LED High Bay |
| Ambient Temp. Range | -40°F to +122°F |
| Ballast Type | Not Applicable |
| Bay Light Type | High Bay |
| Bulbs Included | Integrated |
| Color Rendering Index | 80 |
| Color Temp. | 4000 K |
| Cord Length | 6 ft. |
| Dimmable | Yes |
| Emergency Battery Backup | No |
| Fixture Height | 5 3/8" |
| Fixture Housing Color | White |
| Fixture Length | 15 7/16" |
| Fixture Lens Material | Tempered Glass |
| Fixture Lens Type | Clear |
| Fixture Nominal Size | 1 ft. x 1 ft. |
| Fixture Width | 15 3/4" |
| For Bulb Base Type | Integrated LED |
| For Bulb Shape | Integrated Led |
| For Bulb Type | Integrated LED |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Height | 5.188" |
| Housing Color | White |
| Housing Finish | Powder Coat |
| Housing Material | Aluminum |
| Includes | 1/2 In Loop, 1/4 In Eye Bolt, 17 3/4 In Cord , 1/2" Loop, 1/4" Eye Bolt, 17-3/4" Cord |
| Lamp Type | Integrated LED |
| Lamp Watts | 181 W |
| Led Replacement For | 400W MH/HPS6-Lamp T5HO8-Lamp T8 |
| Length | 15 3/4" |
| Lens Material | Tempered Glass |
| Light Distribution | General |
| Lighting Certification | Designlights Consortium (DLC) |
| Lighting Technology | LED |
| Lumens | 26699 lm |
| Lumens Per Watt | 145.9 lm/W |
| Max. Ambient Temp. | 122°F |
| Max. Fixture Wattage | 182 W |
| Mfr. Series | JEBL Series |
| Min. Ambient Temp. | -40°F |
| Mounting Type | Suspended Chain, Cable |
| Number Of Light Bars | 0 |
| Occupancy Sensor | No |
| Rated Life | 54000 hrs. |
| Reflector Material | Aluminum |
| Reflector Type | No Reflector |
| Suggested Fixture Mounting Height | 0 ft. to 25 ft. |
| Suggested Fixture Mounting Height Range | 20 ft. to 40 ft. |
| Voltage | 120-277V AC |
| Width | 15 3/4" |
| Ca Title 24 Compliant | No |
| Color Temperature | 4000 K |
| Fixture Mounting Type | Suspended Chain Or Cable |
| Ingress Protection Rating | 65 |
| Lamp Watts - Fixtures | 181 W |
| Overall Height | 5 3/16" |
| Overall Length | 15 3/4" |
| Overall Width | 15 3/4" |
| Series | JEBL Series |
| Standards | CSA CERTIFIED TO U.S. AND CANADIAN SAFETY STANDARDS |
| Ship weight (kg) | 6.66 |
| Ship height (cm) | 13.18 |
| Ship length (cm) | 40.01 |
| Ship width (cm) | 40.01 |
| Country of Origin | CN |
| Product | Model | Price | |
|---|---|---|---|
 |
JEBL 12L 40K 80CRI WH | €276.38 | |
|
JEBL 18L 40K 80CRI WH | - | RFQ
|
 |
JEBL 30L 40K 80CRI WH | - | RFQ
|
|
JEBL 30L 50K 80CRI WH | - | RFQ
|
 |
JHBL12000LMGLND277GZ1050K70CRIMSE10NWLDW | €1,104.81 |
