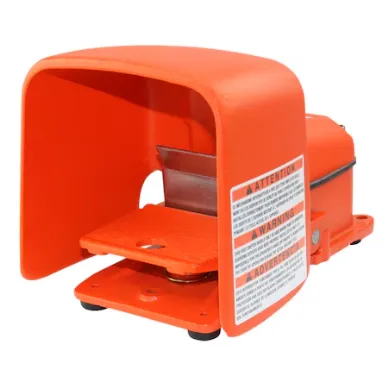

| Item | Foot Pedal |
| Housing Colors | Orange |
| Ac Contact Rating | 20A @ 125 to 250V |
| Action Type | Momentary |
| Color | Orange |
| Contact Configuration | Form CC |
| Contact Form | DPDT |
| Display Qty | 1 |
| Electrical Ratings | 20A, 125-250V AC, 1 hp, 125-250V AC, Heavy Pilot Duty 250V AC Max. |
| Features | (3) Mounting Holes, Dual Treadle Return Springs, Latch Trip Lever, Latching Mechanism, Non-Skid, Smooth Trip Lever Release |
| Foot Guard Included | Guard Included |
| Hazardous Location Specification | Not Rated |
| Horsepower | 1 hp @ 125-250V AC |
| Housing Material | Cast Iron |
| Includes Potentiometer | No Potentiometer Included |
| Ip Rating | IP56 |
| Material | Cast Iron |
| Nema Enclosure Rating | NEMA 2, NEMA 4, NEMA 13 |
| Number Of Pedals | 1 |
| Overall Height | 1.57" |
| Power Source | Electrically Corded |
| Resistance Properties | Dust Tight, Oil and Grease Resistant, Watertight |
| Series | Hercules Series |
| Shields And Guards | OX Shield |
| Standards | CSA, CULUS, ROHS |
| Switch Action | Momentary |
| Switch Type | Electrical |
| Termination Connection Type | Screw Terminal |
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 3.99 |
| Ship length (cm) | 12.85 |
| Ship width (cm) | 12.85 |
| Country of Origin | US |
