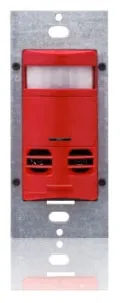

LEVITON OSSMT-MDR Occupancy Sensor
Request a Quote
Payment
Payment
| Item | Occupancy Sensor |
| Color | Red |
| Communication Method | Hard Wired |
| Compatible With | 1/4 Hp Motor |
| Coverage Angle | 180° |
| Installation Location (motion Sensor) | Wall Switch Box |
| Lighting Technology | Fluorescent, Incandescent, Tungsten |
| Max. Capacity @ 277vac | 2700 VA (Fluorescent) |
| Operating Voltage | 120-277V AC |
| Sensing Technology | Passive Infrared, Ultrasonic |
| Time Delay | 30 sec. to 30 min. , Adaptive, Adjustable |
| Compatible With Series | Switching Only (universal) |
| Coverage Type | Small Motion |
| Dimming Method | No Dimming |
| Dimming Type | No Dimming |
| Fan Rated | No |
| Horsepower Rating | 1/4 hp |
| Includes Dimming Switch | Dimming Switch Not Included |
| Includes Motion Sensor | Yes |
| Includes Wall Plate | Wall Plate Not Included |
| Installation Location | Wall |
| Load Rating @ 120v Ac | 1200 VA (Fluorescent)800 W (Incandescent, Tungsten) |
| Load Rating @ 277v Ac | 2700VA (Fluorescent) |
| Manufacturer Warranty | 5 yrs. |
| Maximum Coverage Area | 2400 sq. ft. |
| Maximum Detection Distance | 40 ft. |
| Maximum Operating Temperature | 104°F |
| Maximum Time Delay | 30 min. |
| Minimum Operating Temperature | 32°F |
| Minimum Time Delay | 30 sec. |
| Neutral Required | Yes |
| Nightlight | No |
| Number Of Buttons | 1 |
| Overall Depth | 1.85" |
| Overall Height | 4.06" |
| Overall Width | 1 3/4" |
| Rated Frequency | 50/60 Hz |
| Sensor Operation | Occupancy, Vacancy, Photocell |
| Series | Decora Series |
| Standards | TITLE 24 COMPLIANT, UL/CUL LISTED, USMCA COMPLIANT |
| Time Delay Adjustment Method | Adaptive |
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 10.31 |
| Ship length (cm) | 4.7 |
| Country of Origin | CN |
