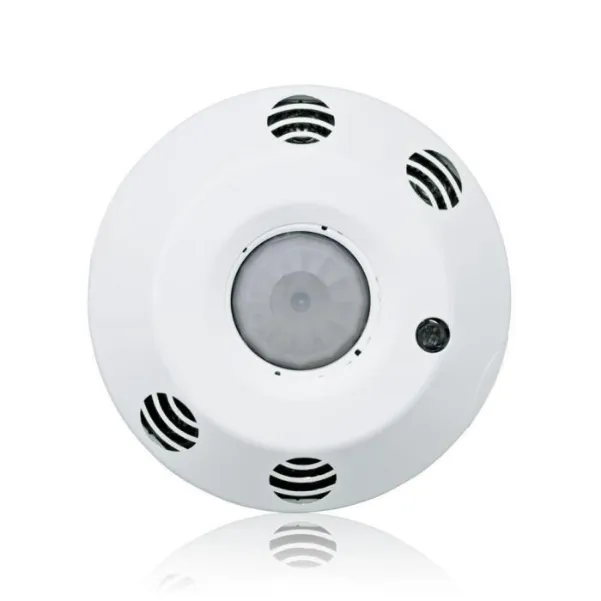

LEVITON ODC10-MDW Hard Wired, Ceiling, 1000 sq ft Coverage at Suggested Mounting Height, 120/230/277 VAC
Request a Quote
Payment
Payment
| Item | Motion Sensor |
| Color | White |
| Communication Method | Hard Wired |
| Compatible With | 1/3 Hp Motor, 1/4 Hp Motor, Electronic Ballast, Tungsten Magnetic Ballast |
| Coverage Angle | 360° |
| Includes | (2) #6-32 Screw, 360° Perforated Mask, Angled Light Pipe, Emergency Label, Half Mask, Low Voltage Connector, Mid-Range Lens, Mounting Plate, Tubing Barrier |
| Installation Location (motion Sensor) | Ceiling |
| Lighting Technology | Tungsten |
| Max. Capacity @ 120vac | 800 W (Tungsten, Ballast, 1/4 hp Motor), 8A (Electronic Ballast) |
| Max. Capacity @ 277vac | 6A/6AX (Electronic Ballast, Tungsten Magnetic Ballast, 1/3 hp Motor) |
| Operating Voltage | 120/230/277V AC |
| Sensing Technology | Passive Infrared, Photocell, Ultrasonic |
| Suggested Mounting Height | 8 ft. to 12 ft. |
| Time Delay | 10 min., 20 min., 30 min., 30 sec., 5 min. , Adaptive, Adjustable |
| Compatible With Series | Tungsten Magnetic Ballast |
| Installation Location | Ceiling |
| Load Rating @ 120v Ac | 800W/VA 8A (Incandescent, 1/4 HP Motor) |
| Load Rating @ 277v Ac | 5A (Electronic Ballast), 1200VA (1/3 HP Motor) |
| Manufacturer Warranty | 5 yrs. Limited |
| Maximum Coverage Area | 1000 sq. ft. |
| Maximum Mounting Height | 12 ft. |
| Maximum Operating Temperature | 104°F |
| Maximum Time Delay | 15 min. |
| Minimum Mounting Height | 8 ft. |
| Minimum Operating Temperature | 32°F |
| Minimum Time Delay | 20 sec. |
| Overall Depth | 2.39" |
| Overall Height | 2.15" |
| Overall Width | 4 4/5" |
| Sensor Operation | Occupancy, Photocell |
| Series | Provolt Series |
| Standards | CEC TITLE 20/24 COMPLAINT, ROHS COMPLIANT, UL/CE |
| Time Delay Adjustment Method | Adaptive |
| Voltage Type | Line Voltage |
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 6.07 |
| Ship length (cm) | 12.19 |
| Country of Origin | CN |
