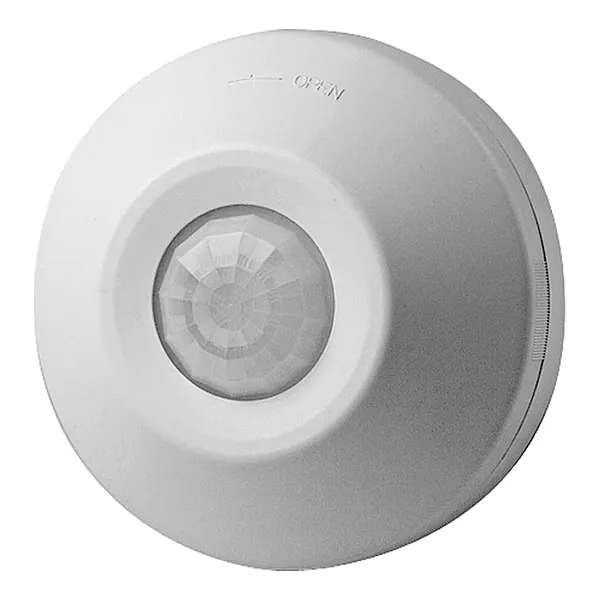

LEVITON ODC0S-I7W Hard Wired, Ceiling, 530 sq ft Coverage at Suggested Mounting Height, 277 VAC, White, Adj
€152.15 /unit
Request a Quote
Payment
Payment
| Item | Motion Sensor |
| Color | White |
| Communication Method | Hard Wired |
| Coverage Angle | 360° |
| Installation Location (motion Sensor) | Ceiling |
| Lighting Technology | Fluorescent, Incandescent |
| Max. Capacity @ 277vac | 1000 W (Incandescent), 2700 VA(Fluorescent) |
| Operating Voltage | 277V AC |
| Sensing Technology | Passive Infrared |
| Suggested Mounting Height | 8 ft. to 10 ft. |
| Time Delay | 20 sec. to 15 min. , Adjustable |
| Includes | (2) #8-32x1-1/2" Screw, (2) Wire Connector |
| Installation Location | Ceiling |
| Load Rating @ 120v Ac | 1000V (Incandescent); 2, 700 VA (Fluorescent) |
| Load Rating @ 277v Ac | 1000 W (Incandescent), 2700VA (Fluorescent) |
| Manufacturer Warranty | 5 yrs. Limited |
| Maximum Coverage Area | 530 sq. ft. |
| Maximum Mounting Height | 10 ft. |
| Maximum Operating Temperature | 122°F |
| Maximum Time Delay | 15 min. |
| Minimum Mounting Height | 8 ft. |
| Minimum Operating Temperature | 32°F |
| Minimum Time Delay | 20 sec. |
| Overall Height | 2.15" |
| Overall Width | 4.3" |
| Sensor Operation | Occupancy, Photocell |
| Standards | CEC TITLE 20/24 COMPLAINT |
| Voltage Type | Line Voltage |
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 5.46 |
| Ship length (cm) | 10.92 |
| Country of Origin | CN |
