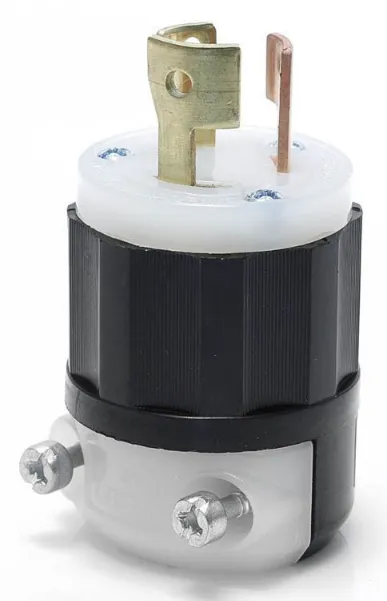

| Item | Locking Plug |
| Amps | 10/15A |
| Blade Material | Brass |
| Body Length | 2.7" |
| Body Material | Nylon |
| Connection Orientation | Straight |
| Face Dia. | 1.97" |
| For Environment | Dry |
| For Maximum Cable Diameter | 0.7" |
| For Minimum Cable Diameter | 6/25" |
| Grade | General Use |
| Grounding | Non Grounded |
| Housing Color | Black, White |
| Ip Rating | Not Rated |
| Max. Operating Temp. | 60°C |
| Max. Wire Size | 10 AWG |
| Midget Locking | No |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 18 AWG |
| Nema Plug Configuration | Non-NEMA |
| Number Of Blades | 3 |
| Number Of Poles | 3 |
| Outside Dia. | 2.22" |
| Phase | 3.0 |
| Polarized | Yes |
| Resistance Properties | Chemical Resistant, Impact Resistant, UV/Sunlight Resistant |
| Shrouded | No |
| Voltage | 125/250V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Current Rating | 10/15A |
| Face Diameter | 1.97" |
| Housing Material | Nylon |
| Market | Industrial |
| Maximum Operating Temperature | 60°C |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 18 AWG |
| Outside Diameter | 2.22" |
| Standards | ANSI C73, CSA C22.2 NO. 42 FILE LR-406, NEMA WD-6, NOM 057 CERTIFIED, UL 498 FILE E13393 |
| Ul 94 Flammability Rating | HB |
| Voltage Rating | 125/250V AC |
| Ship weight (kg) | 0.78 |
| Country of Origin | MX |
