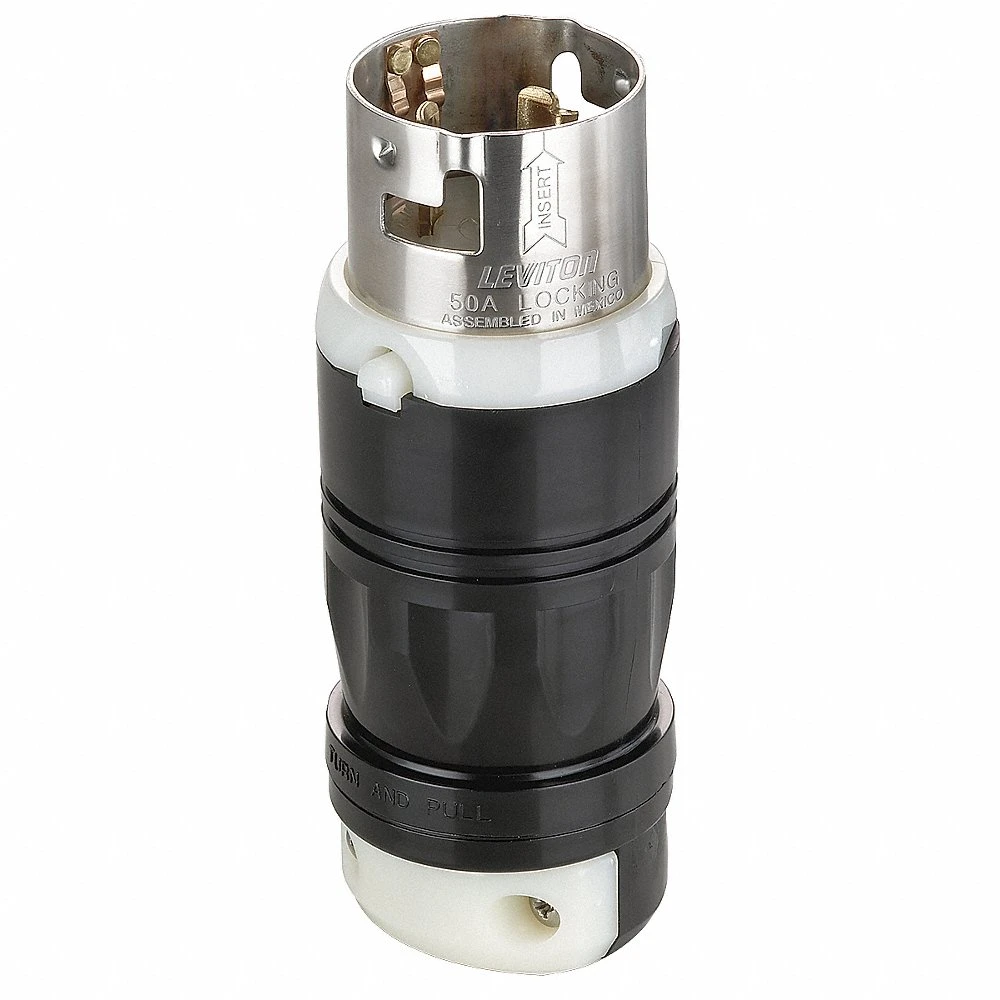

| Item | Locking Plug |
| Amps | 50A |
| Blade Material | Brass |
| Body Material | Nylon |
| Connection Orientation | Straight |
| Face Dia. | 2 14/25" |
| For Environment | Dry |
| For Maximum Cable Diameter | 1 1/8" |
| For Minimum Cable Diameter | 17/25" |
| Grade | General Use |
| Grounding | Grounded |
| Housing Color | Black, White |
| Ip Rating | Not Rated |
| Max. Operating Temp. | 75°C |
| Max. Wire Size | 4 AWG |
| Midget Locking | No |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 10 AWG |
| Nema Plug Configuration | Non-NEMA |
| Number Of Blades | 3 |
| Number Of Poles | 2 |
| Polarized | Yes |
| Resistance Properties | Chemical Resistant, Corrosion Resistant, Impact Resistant, UV/Sunlight Resistant |
| Shrouded | Yes |
| Voltage | 250V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Current Rating | 50A |
| Face Diameter | 2.56" |
| Housing Material | Nylon |
| Market | Industrial |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 4 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 10 AWG |
| Phase | Single |
| Standards | CSA C22.2 NO. 42 FILE E152105, NOM 057 CERTIFIED, ROHS COMPLIANT, UL 498 FILE E13399 |
| Ul 94 Flammability Rating | V-2 |
| Voltage Rating | 250V AC |
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 17.12 |
| Ship length (cm) | 6.5 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
