| Item | Valve |
| Directions Controlled | 1 |
| Inlet Port Type | Push To Connect |
| Inlet Size | 0.156" |
| Max. Pressure | 145 psi |
| Max. Temp. | 158°F |
| Outlet Size | 1/8" |
| Outlet Type | NPT |
| Pressure | 14.5 psi to 145 psi |
| Adjustment Material | Brass |
| Adjustment Method | Screwdriver |
| Application | Bottling, Dispensing, Filling, Packaging, Pneumatic Circuits |
| Body Material | Nylon |
| Configuration | Angle |
| Control Direction | Uni-Directional |
| Finish | Glass Reinforced |
| Flow Rate - Maximum | 7.3 SCFM |
| For Tube Type | Fluoropolymer, Nylon, Polyurethane, Semi Rigid Nylon |
| Inlet Port | 5/32" Female Push On |
| Inlet Port Connection Gender | Female |
| Inlet Port Connection Size | 5/32" |
| Inlet Port Connection Type | Push On |
| Operating Pressure | 15 psi to 145 psi |
| Operating Pressure - Maximum | 145 psi |
| Operating Pressure - Minimum | 15 psi |
| Operating Temperature | 32°F to 158°F |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | 32°F |
| Outlet Port | 1/8" MNPT |
| Outlet Port Connection Gender | Male |
| Outlet Port Connection Size | 1/8" |
| Outlet Port Connection Type | NPT |
| Overall Length | 1/16" |

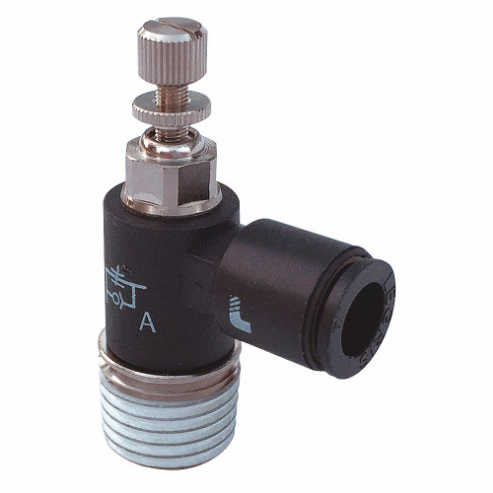

| Product Type | Flow Control Valve |
| Seal Material | Nitrile |
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 1.27 |
| Country of Origin | CN |
| Product | Model | Price | |
|---|---|---|---|
 |
7770 62 00 | €117.40 | |
 |
7045 56 14 | €53.58 | |
 |
7065 56 14 | €54.16 | |
 |
7015 56 14 | €39.37 | |
 |
7065 56 11 | €37.56 | |
 |
7665 56 11 | €43.98 | |
|
7045 56 11 | €49.90 |
