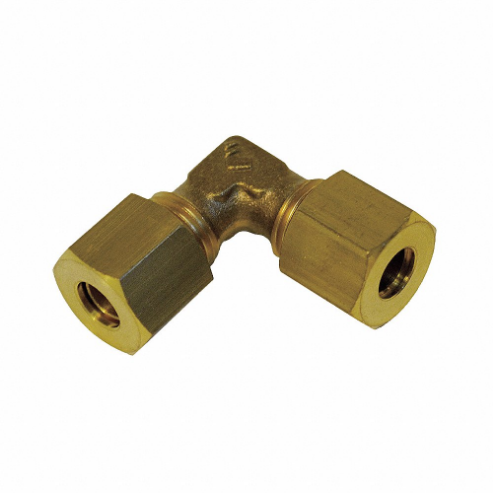

| Item | Elbow |
| Application | Air, Chemical Fluids, Fuel, Hydraulic Oil, Machining Oil, Potable Water , Chemical Fluids, Air, Fuel, Hydraulic Oil, Machining Oil, Potable Water |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Elbow |
| Compatible Tube Material | Aluminum, Copper, Thermoplastic |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 6 mm |
| Fitting Side B Connection Type | Compression |
| Fitting Side B Tube Outer Diameter | 6 mm |
| Hex Size | 13 mm |
| Length | 22 mm |
| Material | Brass |
| Max. Operating Pressure | 2175 psi |
| Max. Operating Temp. | 250°F |
| Mfr. Series | Metric Compression Series |
| Min. Operating Temp. | 40°F |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow |
| System Of Measurement | Metric |
| Tube Size | 15/64" |
| Type | Compression |
| Fitting Material | Brass |
| Maximum Operating Pressure | 2175 psi |
| Maximum Operating Temperature | 250°F |
| Minimum Operating Temperature | 40°F |
| Overall Length | 22 mm |
| Series | Metric Compression |
| Standards | CNOMO: E07.21.115N, DI: 2002/95/EC (ROHS), DI: 94/9/EC (ATEX), DI: 97/23/EC (PED), RG: 1907/2006 (REACH), SAE J512 |
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 1.55 |
| Ship length (cm) | 2.2 |
| Ship width (cm) | 2.2 |
| Country of Origin | FR |
| Product | Model | Basic Material | Body Material | Connection Type | Item | Tube Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
3182 04 56 | Plastic | Glass Filled Nylon | Tube x Stem | Elbow, 90 Degrees | 5/32" | 10 | €106.71 | |
 |
3109 60 14 | Plastic/Metal Combination | Glass Filled Nylon and Nickel Plated Brass | Tube x MNPT | Elbow, 90 Degrees | 3/8" | 10 | €124.96 | |
 |
3889 04 11 | - | - | - | Elbow | - | 2 | €142.83 | |
 |
3889 62 18 | - | - | - | Elbow | - | 2 | - | RFQ
|
 |
3809 06 11 | - | - | - | Elbow | - | 2 | €129.81 | |
 |
3899 04 20 | - | - | - | Elbow | - | 2 | €165.28 | |
|
0102 08 00 | - | - | - | Elbow | - | 10 | €257.19 |
