Get it by Tuesday, Jun 17
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
Payment

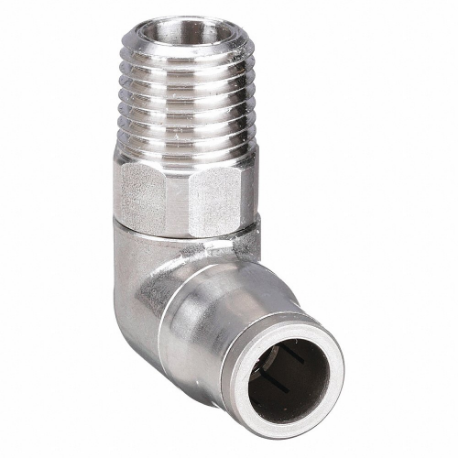

| Item | Elbow |
| Compatible Tube Material | Copper, Fluoropolymer, Polyethylene, Polyurethane, Nylon, Stainless Steel |
| Application | Chemicals, Food Processing |
| Compatible Tube Hardness | 95 Shore A |
| Fitting Material | Stainless Steel |
| Fitting Side A Connection Type | Push-to-Connect |
| Fitting Side A Tube Outer Diameter | 5/32" |
| Fitting Side B Connection Type | MNPT |
| Fitting Side B Pipe Size | 1/8" |
| Material Grade | 316L |
| Maximum Operating Pressure | 435 psi |
| Maximum Operating Temperature | 302°F |
| Minimum Operating Temperature | 13°F |
| Overall Length | 25/32" |
| Resistance Properties | Abrasion Resistant, Chemical Resistant, Corrosion Resistant |
| Specific Fitting Shape | Elbow |
| Standards | 2011/65/EC, DI: 2002/95/EC (ROHS), DI: 94/9/EC (ATEX), DI: 97/23/EC (PED), ISO 14743, RG: 1907/2006 (REACH), RG: 1935/2004/EC, RG: 21CFR (FDA APPROVED), UL 94 V-0: SEAL, USDA NSF H1: GREASE |
| System Of Measurement | Imperial |
| Vacuum Rating | 28 in. hg |
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Basic Material | Body Material | Connection Type | Item | Tube Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
3182 04 56 | Plastic | Glass Filled Nylon | Tube x Stem | Elbow, 90 Degrees | 5/32" | 10 | €106.71 | |
 |
3109 60 14 | Plastic/Metal Combination | Glass Filled Nylon and Nickel Plated Brass | Tube x MNPT | Elbow, 90 Degrees | 3/8" | 10 | €124.96 | |
 |
3889 62 18 | - | - | - | Elbow | - | 2 | - | RFQ
|
 |
3809 06 11 | - | - | - | Elbow | - | 2 | €129.81 | |
 |
3899 04 20 | - | - | - | Elbow | - | 2 | €165.28 | |
 |
0102 08 00 | - | - | - | Elbow | - | 10 | €257.19 | |
|
0102 12 00 | - | - | - | Elbow | - | 10 | €520.60 |
