LEESON M1145038.00 CM38P17FZ17 AC Gearmotor | AJ2WXU CM38P17FZ17

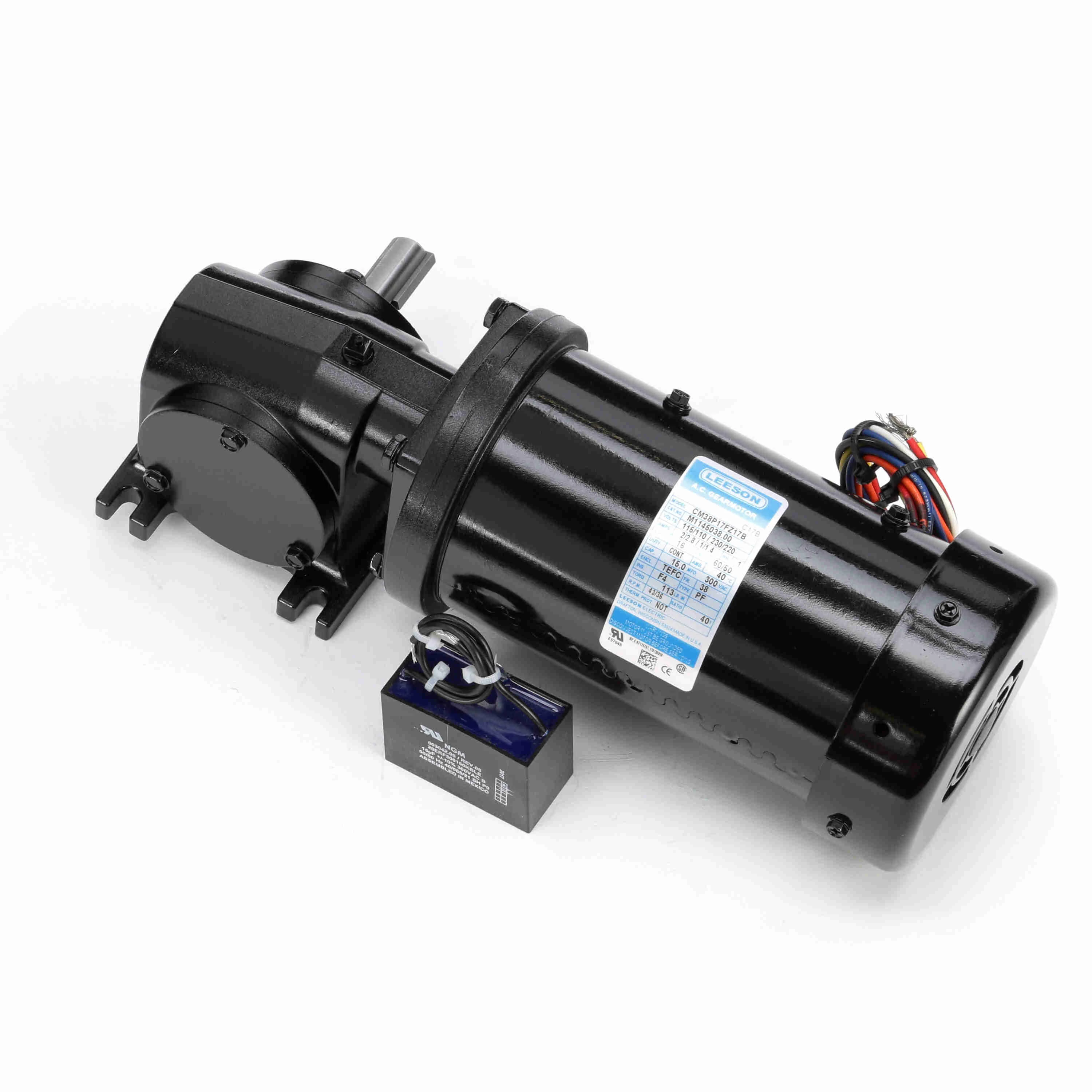

LEESON M1145038.00 CM38P17FZ17B Right Angle Gearmotor, 0.16 HP, 1 Phase, 60/50 Hz, 110V, 43 RPM

Item: AJ2WXUModel: M1145038.00Cross Ref: 794AP3 / CM38P17FZ17B
In Stock

Get it by Thursday, Jun 19

€1,187.96 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

ItemAC Gearmotor
CodeD
Duty RatingContinuous
Enclosure TypeTotally Enclosed Fan Cooled
Frame38
Full Load Amps2.8/1.4/2/1A
Insulation ClassClass F4
Max. Ambient Temp.40°C
MountingSpecial
PackagingM1307027.01
Phase1
RotationReconn
Rpm43/36 RPM
Series13
Service Factor1
Shaft Dia.5/8"
Shaft TypeRight Angle
TypePF
Base To Center Of Shaft1.67"
Bearing TypeBall
Brake TypeNone
Capacitor RequiredYes
FeaturesDouble Output Shaft Available As A Factory Option, Gearbox Has All Ball Bearings, Lubrication Is Permanent With An Oil Bath, Optional Conduit Box Available, Output Shaft Is Field Interchangeable From Left Hand To Right Hand Style By Reassembly, Permanent Split Capacitor Design Rated For 115/230VAC 60/50 HZ Input, Precision Machined Aluminium Gear Housing, Steel Worm With Bronze Worm Wheel For Long Life And Quiet Operation, Worm-Type Right-Angle Gearing Features Hardened
Frequency50/60 Hz
Full Load Current2/1A
Gear Ratio40:1
Housing MaterialAluminum
IncludesConduit Box
Includes CapacitorCapacitor Included
Includes Junction/conduit BoxYes
Input Horsepower0.16 hp
Keyway Depth1"
Keyway TypeSquare
Keyway Width3/16"
Length Less Shaft10.55"
LubricationOil Bath
Maximum Ambient Temperature104°F
Maximum Output Speed43 RPM
Maximum Torque113 lbs.-in.
Motor Duty ClassContinuous
Motor EnclosureTotally Enclosed Fan Cooled
Motor Insulation ClassClass F
Motor TypePermanent Split Capacitor
Mount TypeHorizontal
Mounting OrientationHorizontal
Nameplate Speed43 RPM
Number Of Output Shafts1
Operating Voltage115/230V AC
Output DirectionReversible
Output Shaft Diameter5/8"
Output Shaft Length1 13/16"
Overall Height5 1/5"
Overall Length12.31"
Overall Width5.81"
Overhung Load Capacity235 lbs.-ft.
Shaft OrientationRight Angle
StandardsCE, CSA, UL
Starting Torque113 lbs.-in.
Thermal ProtectionNone

Shipping Info:

Ship weight (kg) 8.55
Ship height (cm)14.3
Ship length (cm)38.74
Ship width (cm)18.11
Country of OriginUS

Product Details:

    • HPKW: .16/.16
    • Nameplate: M1004149.02
    • Overrlung Ld.: 235
    • Winding: MP38440
    • GROUP: 3 B
    • Paint: M1305027.01

Product Variants

ProductModelAssemblyEnclosureFrameFull Load AmpsMfr. SeriesRpmShaft Dia.TypePrice
LEESON M1125081.00 CM31P17NZ18 AC Gearmotor | AJ2WVP CM31P17NZ18 M1125081.00M1040445TENV31.9/.45 / .9/.451043/351/2Pn€1,235.32
LEESON M1125083.00 CM31P17NZ16 AC Gearmotor | AJ2WVQ CM31P17NZ16 M1125083.00M1040445TENV31.9/.45 / .9/.451085/701/2Pn€1,173.89
LEESON M1125084.00 CM31P17NZ15 AC Gearmotor | AJ2WVR CM31P17NZ15 M1125084.00M1040445TENV31.9/.45 / .9/.4510173/1441/2Pn€337.33
LEESON M1145039.00 CM38P17FZ18 AC Gearmotor | AJ2WXV CM38P17FZ18 M1145039.00M1040447TEFC382.8/1.4 / 2/11383/695/8PF€1,187.96
LEESON M1145041.00 CM38P17FZ20 AC Gearmotor | AJ2WXX CM38P17FZ20 M1145041.00M1040447TEFC382.8/1.4 / 2/113340/2835/8PF€1,187.96
