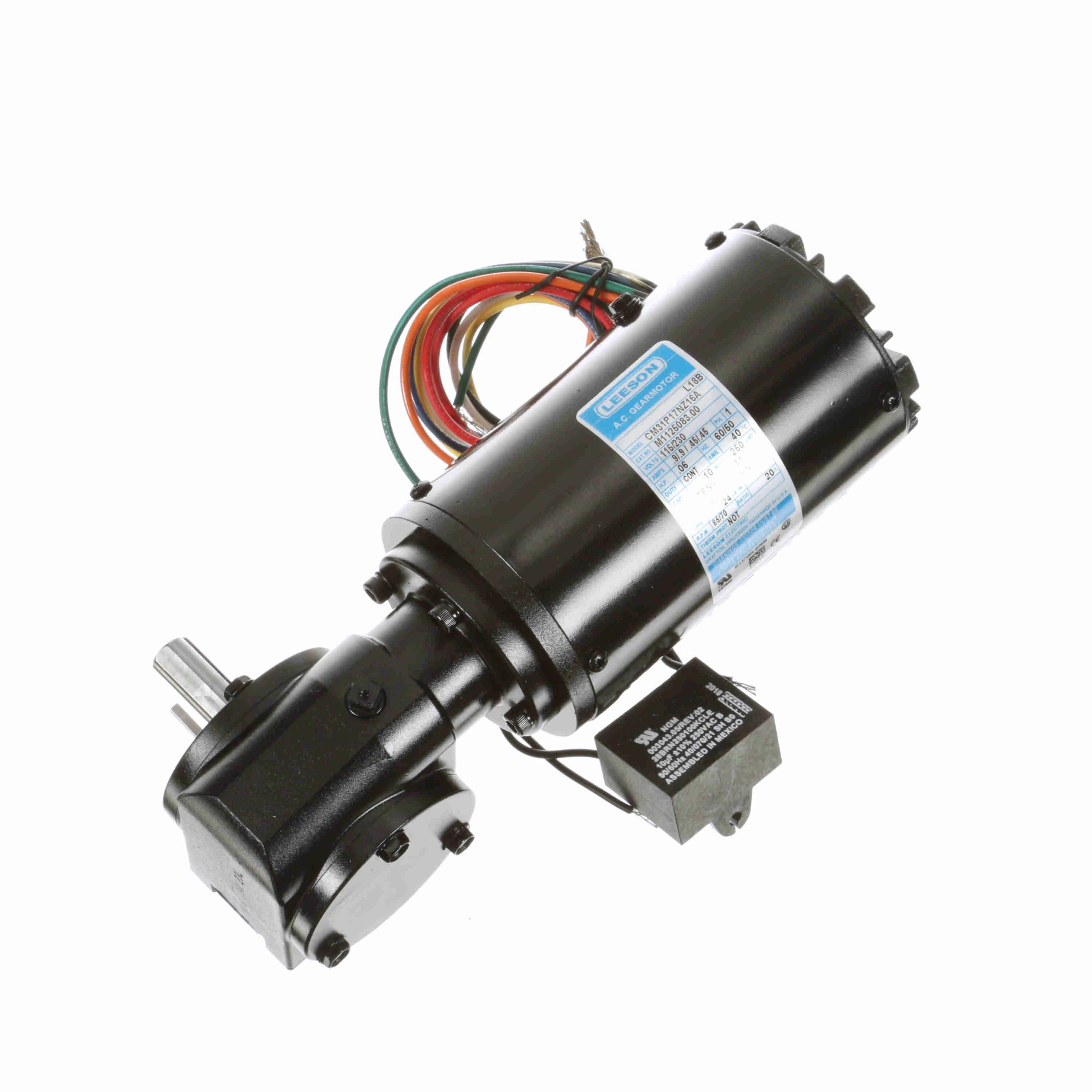

LEESON M1125083.00 CM31P17NZ16A Right Angle Gearmotor, 0.06 HP, 1 Phase, 60 Hz, 115V, 85 RPM
Get it by Tuesday, Jun 17
€1,173.89 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | AC Gearmotor |
| Code | C |
| Duty Rating | Continuous |
| Enclosure Type | Totally Enclosed Non Ventilated |
| Frame | 31 |
| Insulation Class | Class F4 |
| Max. Ambient Temp. | 40°C |
| Mounting | Special |
| Packaging | M1307027.01 |
| Phase | 1 |
| Rotation | Reconn |
| Rpm | 85/70 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Type | Right Angle |
| Type | PN |
| Base To Center Of Shaft | 1 12/25" |
| Bearing Type | Ball |
| Brake Type | None |
| Capacitor Required | Yes |
| Features | Double Output Shaft Available As A Factory Option, Gearbox Has All Ball Bearings, Lubrication Is Permanent With An Oil Bath, Optional Conduit Box Available, Optional Gearbox Base Available (10 Series Only), Output Shaft Is Field Interchangeable From Left Hand To Right Hand Style By Reassembly, Permanent Split Capacitor Design Rated For 115/230VAC 60/50 HZ Input, Precision Machined Aluminium Gear Housing, Steel Worm With Bronze Worm Wheel For Long Life And Quiet Operation, Worm-Type Right-Angle Gearing Features Hardened |
| Frequency | 60 Hz |
| Full Load Current | 0.90/0.45A |
| Gear Ratio | 20:1 |
| Housing Material | Aluminum |
| Includes | Conduit Box, Gearbox Base |
| Includes Capacitor | Capacitor Included |
| Includes Junction/conduit Box | Yes |
| Input Horsepower | 0.06 hp |
| Keyway Depth | 1 1/8" |
| Keyway Type | Square |
| Keyway Width | 3/23" |
| Length Less Shaft | 7.66" |
| Lubrication | Oil Bath |
| Maximum Ambient Temperature | 104°F |
| Maximum Output Speed | 85 RPM |
| Maximum Torque | 24 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Nonventilated |
| Motor Insulation Class | Class F |
| Motor Type | Permanent Split Capacitor |
| Mount Hole Center-to-center Length | 2" |
| Mount Hole Center-to-center Width | 1.19" |
| Mount Type | Horizontal |
| Mounting Orientation | Horizontal |
| Nameplate Speed | 85 RPM |
| Number Of Output Shafts | 1 |
| Operating Voltage | 115/230V AC |
| Output Direction | Reversible |
| Output Shaft Diameter | 1/2" |
| Output Shaft Length | 1 5/16" |
| Overall Height | 4.02" |
| Overall Length | 8.94" |
| Overall Width | 4.95" |
| Overhung Load Capacity | 185 lbs.-ft. |
| Shaft Orientation | Right Angle |
| Standards | CE, CSA, UL |
| Starting Torque | 24 lbs.-in. |
| Thermal Protection | None |
| Ship weight (kg) | 4.5 |
| Ship height (cm) | 16.99 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 19.51 |
| Country of Origin | US |
| Product | Model | Assembly | Enclosure | Frame | Full Load Amps | Mfr. Series | Rpm | Shaft Dia. | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M1125081.00 | M1040445 | TENV | 31 | .9/.45 / .9/.45 | 10 | 43/35 | 1/2 | Pn | €1,235.32 | |
 |
M1125084.00 | M1040445 | TENV | 31 | .9/.45 / .9/.45 | 10 | 173/144 | 1/2 | Pn | €337.33 | |
 |
M1145038.00 | M1040447 | TEFC | 38 | 2.8/1.4 / 2/1 | 13 | 43/36 | 5/8 | PF | €1,187.96 | |
 |
M1145039.00 | M1040447 | TEFC | 38 | 2.8/1.4 / 2/1 | 13 | 83/69 | 5/8 | PF | €1,187.96 | |
 |
M1145041.00 | M1040447 | TEFC | 38 | 2.8/1.4 / 2/1 | 13 | 340/283 | 5/8 | PF | €1,187.96 |
