LEESON LM31463 AAN4S7.5TC61Q15 AC Motor | AJ2WHQ AAN4S7.5TC61Q15

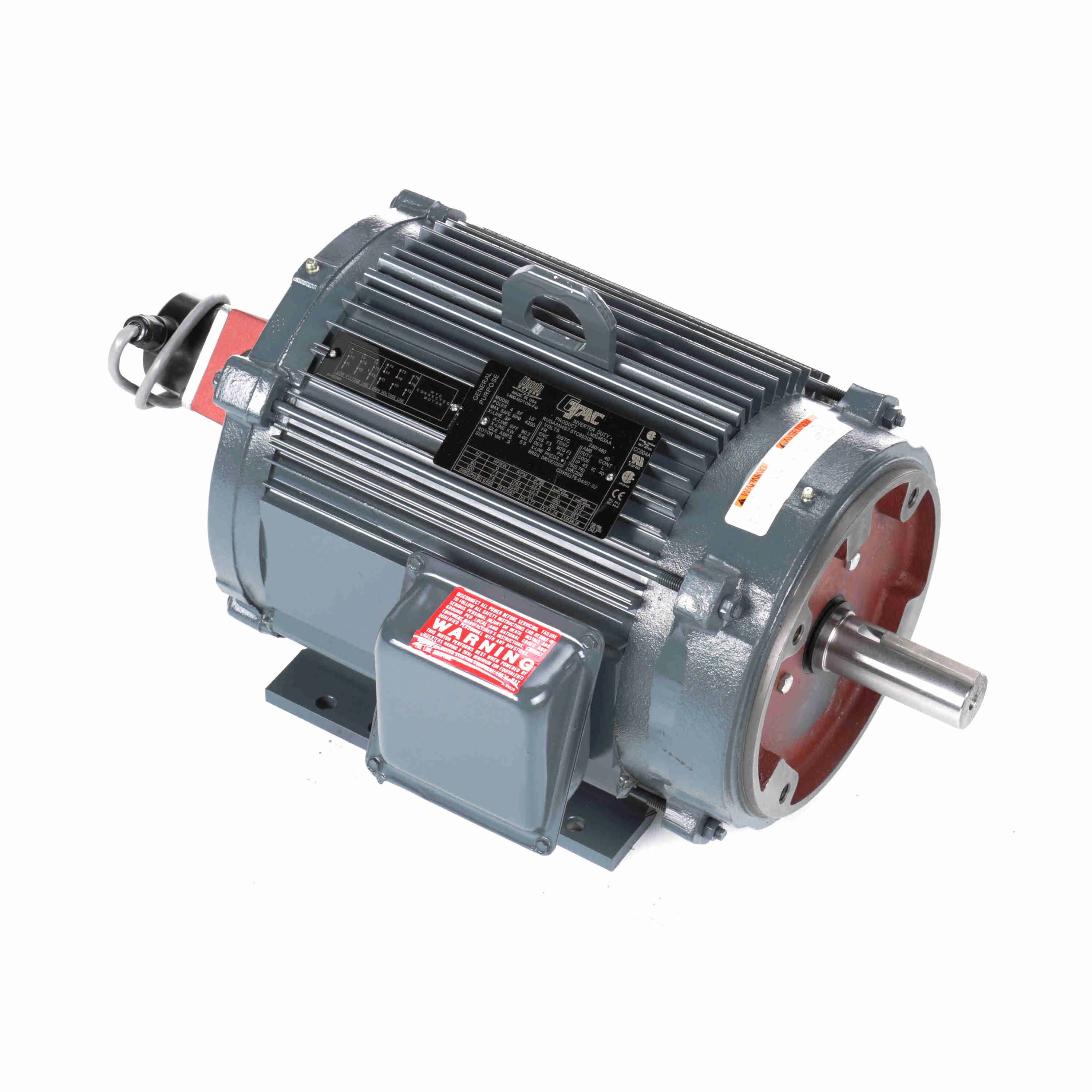

LEESON LM31463 AAN4S7.5TC61Q15 AC Motor

In Stock
Item: AJ2WHQ Model: LM31463Cross Ref: AAN4S7.5TC61Q15

Get it by May 24, Friday

Not eligible for flat shipping. Flat shipping is available on order value €99,00 or more and aggregate weight below 10 pounds.

€4,664.49 /unit
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemVector Motor
CodeL
DesignINV
DutyContinuous
EnclosureTENV
Frame215TC
Full Load Amps21 / 10.5
HP7.5
Hz60
Insulation ClassF
kW5.6
LubricationVERIFY
Max. Ambient Temp.40
MountingRigid
PackagingB
Phase3
Power Factor76
RotationREV
RPM1800
Service Factor1.0
TypeTTL
Voltage230 / 460

Shipping Info:

Ship weight (kg) 103.95
Ship height (cm)20.62
Ship length (cm)41.61
Ship width (cm)26.67

Product Details:

  • Eff 100%: 90.2
  • Bearing OPE: 206
  • CC Number: EXEMPT
  • Bearing PE: 208
  • Winding: K2134177
  • GROUP: 1
  • Paint: GRAY - LINCOLN

Product Variants

ProductModelFrameFull Load AmpsHPkWPower FactorTypePrice
LEESON LM04003 AAN4S5TC61Q15 Vector Motor | AJ2VFX AAN4S5TC61Q15 LM04003213TC15.6 / 7.853.773TTL€3,924.14
LEESON LM10347 SRN4S0.5TC61Q15 Vector Motor | AJ2VGJ SRN4S0.5TC61Q15 LM1034756C1.6 / .81/2.3772TS€2,325.40
