LEESON LM04003 AAN4S5TC61Q15 Vector Motor | AJ2VFX AAN4S5TC61Q15

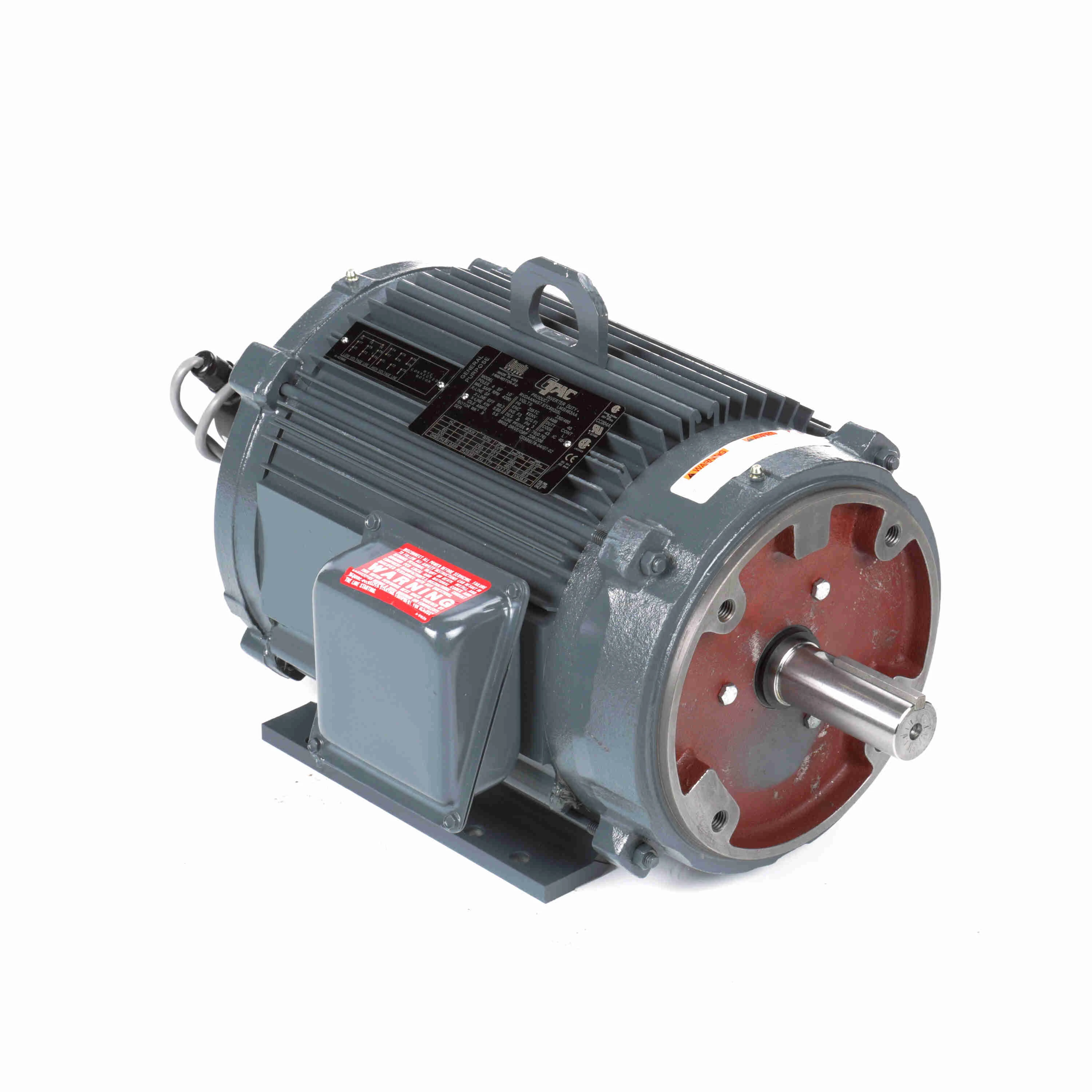

LEESON LM04003 AAN4S5TC61Q15 Vector Motor

In Stock
Item: AJ2VFX Model: LM04003Cross Ref: AAN4S5TC61Q15

Get it by May 24, Friday

Not eligible for flat shipping. Flat shipping is available on order value €99,00 or more and aggregate weight below 10 pounds.

€3,924.14 /unit
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemVector Motor
CodeL
DesignINV
DutyContinuous
EnclosureTENV
Frame213TC
Full Load Amps15.6 / 7.8
HP5
Hz60
Insulation ClassF
kW3.7
LubricationVERIFY
Max. Ambient Temp.40
MountingRigid
PackagingB
Phase3
Power Factor73
RotationREV
RPM1800
Service Factor1.0
TypeTTL
Voltage230 / 460

Shipping Info:

Ship weight (kg) 58.05
Ship height (cm)35.56
Ship length (cm)76.68
Ship width (cm)41.91

Product Details:

  • Eff 100%: 82.5
  • Eff 75%: 81.5
  • Bearing OPE: 206
  • CC Number: EXEMPT
  • Bearing PE: 208
  • Winding: K2134125
  • GROUP: 6
  • Paint: GRAY - LINCOLN

Product Variants

ProductModelFrameFull Load AmpsHPkWPower FactorTypePrice
LEESON LM10347 SRN4S0.5TC61Q15 Vector Motor | AJ2VGJ SRN4S0.5TC61Q15 LM1034756C1.6 / .81/2.3772TS€2,325.40
LEESON LM31463 AAN4S7.5TC61Q15 AC Motor | AJ2WHQ AAN4S7.5TC61Q15 LM31463215TC21 / 10.57.55.676TTL€4,664.49
