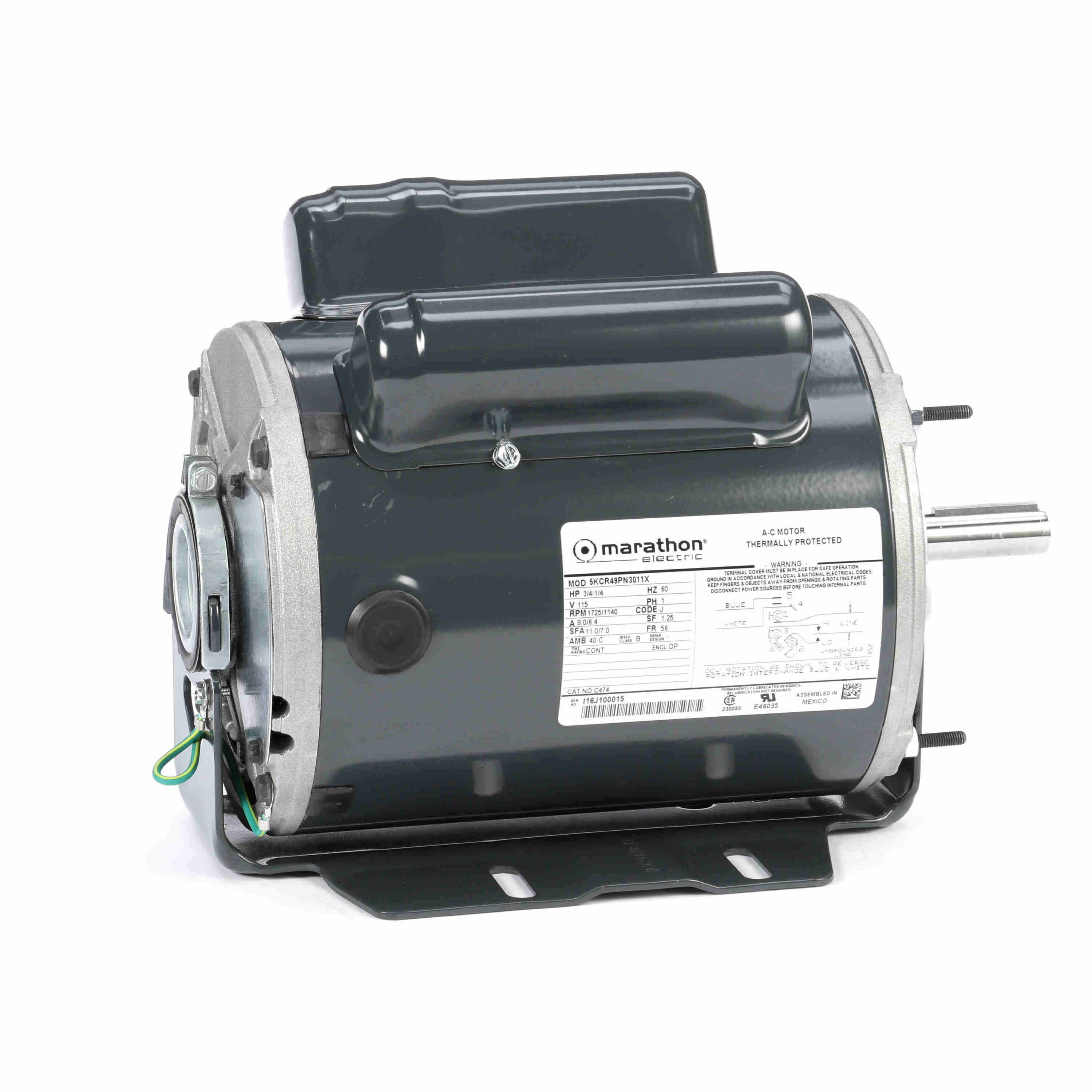

LEESON 5KCR49PN3011X C474 General Purpose Motor, 3/4-1/4 HP, 1 Phase, 60 Hz, 115V, 1800 RPM
Get it by Tuesday, Jun 17
€898.24 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | HVAC Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Capacitor Required | Yes |
| Duty Cycle | Continuous |
| Efficiency | 70% |
| Efficiency Group | Standard |
| Enclosure Type | Open Dripproof |
| Frame | 56 |
| Frame Material | Rolled Steel , Steel |
| Frequency | 60 Hz |
| Full Load Amps | 9/6.4A |
| Hp | 3/4 hp, 1/4 hp |
| Includes | Thermal Protection |
| Insulation Class | Class B |
| Inverter Rated | No |
| Length | 11 1/2" |
| Length Less Shaft | 9 5/8" |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Cradle Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Capacitor Start |
| Mounting Type | Cradle Base |
| No. Of Speeds | 1 |
| Nominal Efficiency | 70% |
| Number Of Speeds | 2 |
| Overall Length | 11 1/2" |
| Phase | 1 |
| Rpm | 1725/1140 RPM |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Shaft Type | Keyed |
| Thermal Protection | Automatic , None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
| Warranty | 1 yr. |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Manufacturers Warranty Length | 1 yr. |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Frame Material | Steel |
| Motor Service Factor | 1.25 |
| Motor Thermal Protection | Auto |
| Nameplate Rpm | 1725/1140 RPM |
| Standards | CSA CERTIFIED, UL LISTED |
| Weight | 31 lbs. |
| Ship weight (kg) | 13.95 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 34.77 |
| Ship width (cm) | 18.11 |
| HS code | 8501404040 |
| Country of Origin | MX |
| Product | Model | Frame | Full Load Amps | HP | Hz | kW | Length Less Shaft | Motor Thermal Protection | Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCR48TN3084X | 56H | 5.3-5.4/3.6-3.7 | 1, 1/3 | 50/60 | - | 10 11/16" | Auto | Cradle Base | €1,009.98 | |
 |
5KCR49PN3011 | 56 | 9.0/6.4 | 3/4, 1/4 | 60 | - | 9.625" | Auto | Cradle Base | €764.89 | |
 |
5KCR49PN3012X | 56 | 4.3-4.4/3.1-3.2 | 3/4, 1/4 | 60 | - | 9.625" | Auto | Cradle Base | €777.23 | |
 |
5KCR49SN3009 | 56 | 10.8/7.4 | 1, 1/3 | 60 | - | 10.125" | None | Cradle Base | €951.96 | |
 |
5KCR49SN3009X | 56 | 10.8/7.4 | 1, 1/3 | 60 | - | 10.125" | Auto | Cradle Base | €990.85 | |
 |
056C17D2074 | 56 | 10.0/5.2-5.0 | 3/4 | 60 | 0.56 | - | - | Resilient Base - Extended Studs | €399.76 | |
 |
5KC49NN0061T | 56Z | 14.4/7.2-7.2 | 1 | 60 | - | - | - | RB | €615.50 |
