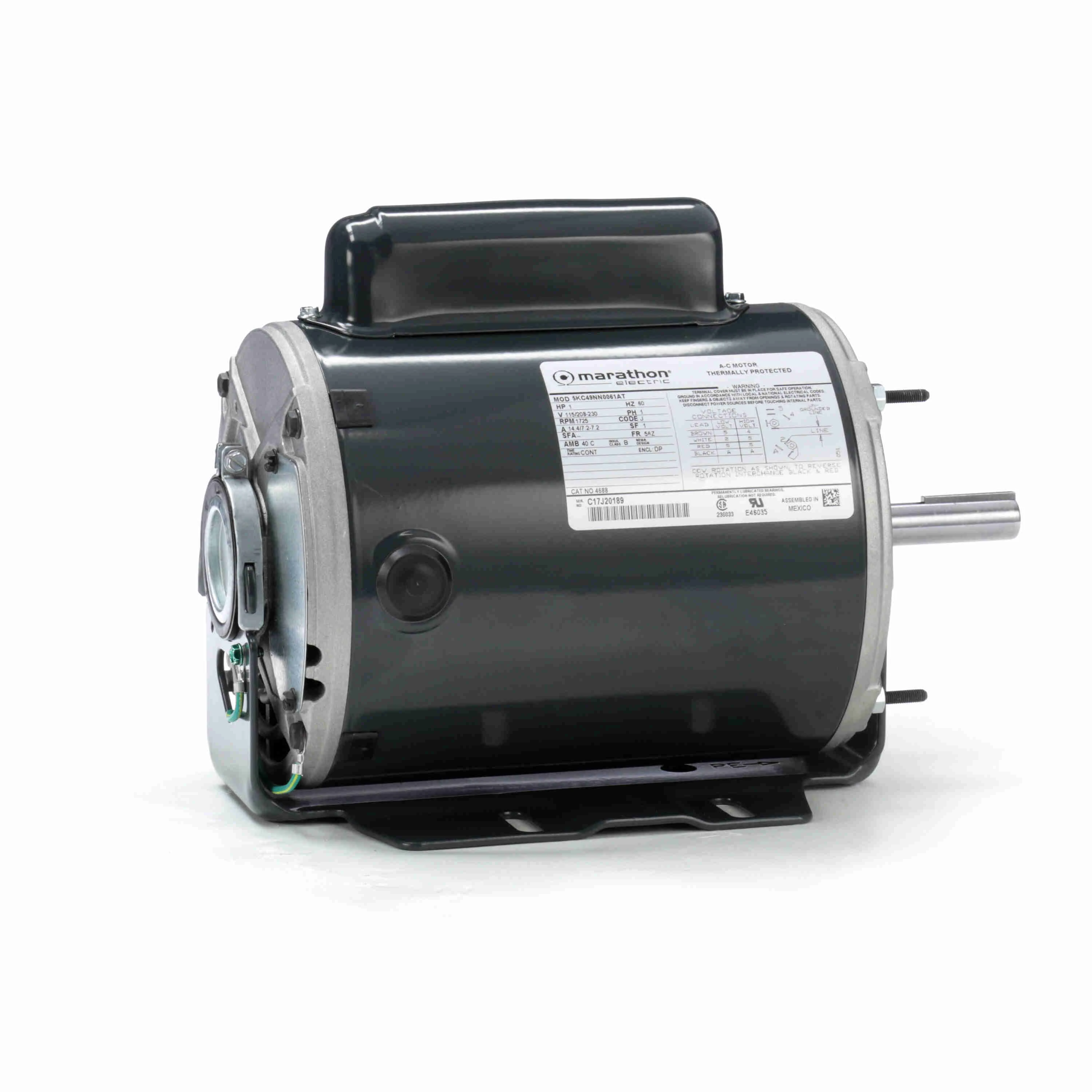

LEESON 5KC49NN0061T 4688 / 5KC49NN0061AT Fan and Blower Motor, 1 HP, 1 Phase, 60 Hz, 115/208-230V, 1800 RPM
Get it by Wednesday, Jun 18
€615.50 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | HVAC Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Body Dia. | 6.438" |
| Duty Cycle | Continuous |
| Enclosure Type | Dripproof |
| Frame | 56Z |
| Frequency | 60 Hz |
| Full Load Amps | 14.4/7.2A |
| Full Load Efficiency | 69% |
| Hp | 1 hp |
| Insulation Class | Class B |
| Length Less Shaft | 9 3/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Cradle |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Belt Drive Fan/Blower |
| Motor Thermal Protection | Automatic |
| Motor Type | Capacitor Start/Induction Run |
| Mounting Type | Resilient Base |
| Nameplate Rpm | 1725 RPM |
| Number Of Speeds | 1 |
| Overall Length | 10 3/4" |
| Phase | 1 |
| Resilient Ring Dia. | 2 1/4" |
| Ring To Ring Center | 9.062" |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 0.63" |
| Shaft Length | 2 1/4" |
| Shaft Orientation | Horizontal/Vertical |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V AC |
| Warranty | 1 yr. |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Manufacturers Warranty Length | 1 yr. |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Service Factor | 1.15 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 69% |
| Standards | CSA (MC236833), UL (E14133) |
| Weight | 27 lbs. |
| Ship weight (kg) | 12.15 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 39.22 |
| Ship width (cm) | 25.88 |
| HS code | 8501406040 |
| Country of Origin | MX |
| Product | Model | Frame | Full Load Amps | HP | Hz | kW | Length Less Shaft | Motor Thermal Protection | Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCR48TN3084X | 56H | 5.3-5.4/3.6-3.7 | 1, 1/3 | 50/60 | - | 10 11/16" | Auto | Cradle Base | €1,009.98 | |
 |
5KCR49PN3011 | 56 | 9.0/6.4 | 3/4, 1/4 | 60 | - | 9.625" | Auto | Cradle Base | €764.89 | |
 |
5KCR49PN3011X | 56 | 9.0/6.4 | 3/4, 1/4 | 60 | - | 9.625" | None | Cradle Base | €898.24 | |
 |
5KCR49PN3012X | 56 | 4.3-4.4/3.1-3.2 | 3/4, 1/4 | 60 | - | 9.625" | Auto | Cradle Base | €777.23 | |
 |
5KCR49SN3009 | 56 | 10.8/7.4 | 1, 1/3 | 60 | - | 10.125" | None | Cradle Base | €951.96 | |
 |
5KCR49SN3009X | 56 | 10.8/7.4 | 1, 1/3 | 60 | - | 10.125" | Auto | Cradle Base | €990.85 | |
 |
056C17D2074 | 56 | 10.0/5.2-5.0 | 3/4 | 60 | 0.56 | - | - | Resilient Base - Extended Studs | €399.76 |
