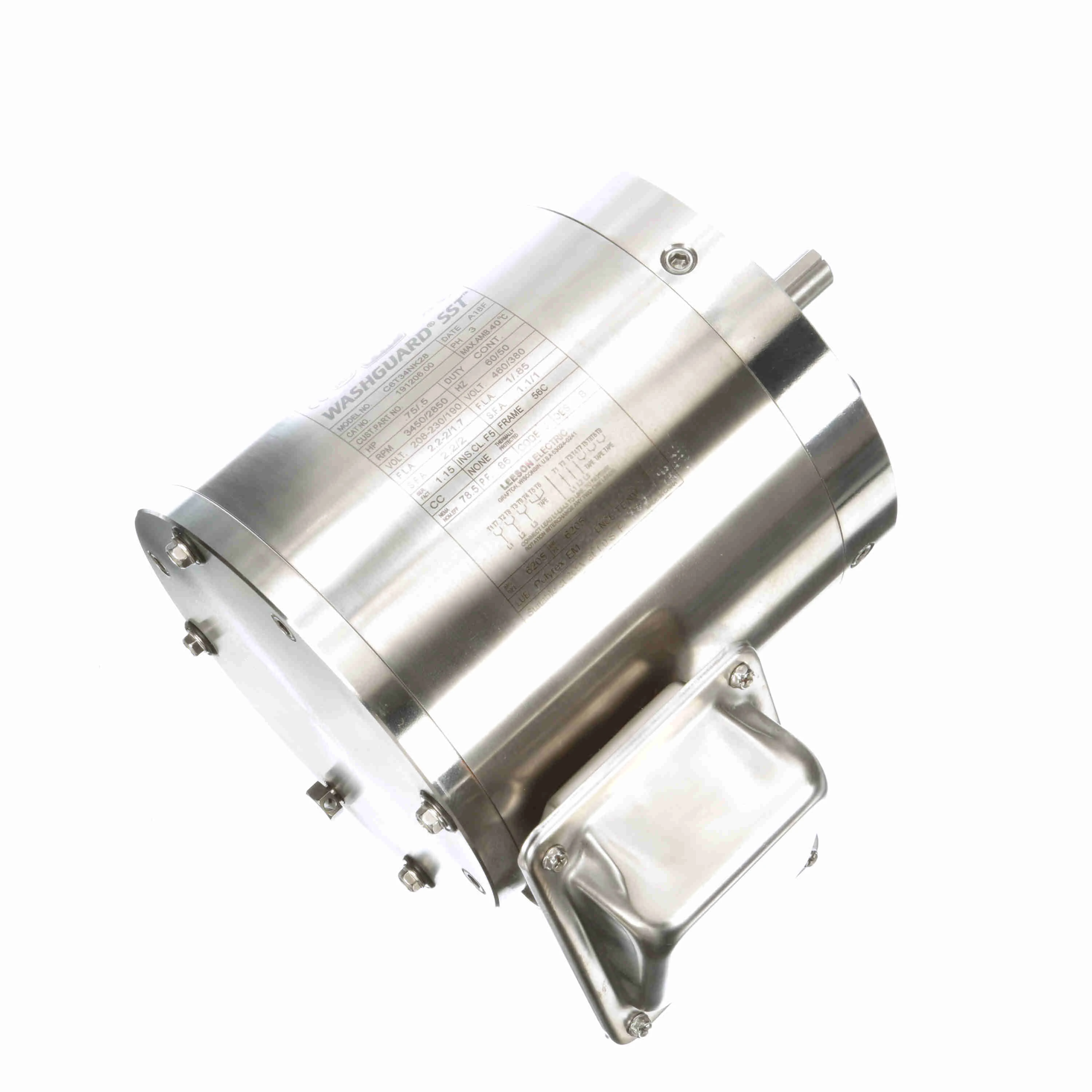

LEESON 191206.00 C6T34NK28A General Purpose Motor, 0.75/0.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 RPM
Get it by Wednesday, Jun 18
€1,448.06 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Application | Washdown |
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Bolt Circle Dia. | 5 7/8" |
| Conduit Box Location | Exterior |
| Duty Cycle | Continuous |
| Finish | Unfinished |
| Frame | 56C |
| Frame Material | Stainless Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 2-2.2/1A |
| Hp | 3/4 hp |
| Insulation Class | Class F |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Face/Base |
| Nameplate Rpm | 3450 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 78.5% |
| Overall Length | 9 3/4" |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Shaft Material | Stainless Steel |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Hz | 50/60 Hz |
| Ins. Class | Class F |
| Length Less Shaft | 8 1/2" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Stainless Steel |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | None |
| Product Type | Washdown Motor |
| Standards | BISSC APPROVED, CE, CSA CERTIFIED, UL RECOGNIZED |
| Weight | 32 lbs. |
| Ship weight (kg) | 14.4 |
| Ship height (cm) | 24.51 |
| Ship length (cm) | 28.5 |
| Ship width (cm) | 27.94 |
| Country of Origin | CN |
| Product | Model | Enclosure | Frame | Full Load Amps | HP | Hz | kW | Length Less Shaft | Max. Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
191201 | TENV | 56 C | 1.2-1.3 / .65 | .33 / .25 | 50/60 | .25 / .19 | - | 40 | €766.67 | |
 |
191414 | TENV | 56C | 2.1-2 / 1 | 1/2 / 1/3 | 50/60 | .37 / 0.25 | - | 40 | €899.66 | |
 |
191415 | TENV | 56C | 3 -3 / 1.5 | 3/4 / 1/2 | 50/60 | .56 / .37 | - | 40 | €1,450.85 | |
 |
191417 | TEFC | 56HC | 3.8-3.8 / 1.9 | 1 / 3/4 | 50/60 | 0.75 / 0.56 | - | 40 | €1,201.29 | |
 |
191486 | TEFC | 143TC | 2.9-2.6/1.3A | 1 | 50/60 Hz | 0.75 / 0.56 | 11 1/2" | 40 Deg. F | €1,171.52 | |
 |
191487 | TEFC | 143TC | 3.2-3 / 1.5 | 1 / 3/4 | 50/60 | .75 / .56 | - | 40 | €1,190.87 | |
 |
191488 | TEFC | 143TC | 4.2-3.8/1.9A | 1 1/2 | 50/60 Hz | 1.12 / .75 | 11 1/2" | 40 Deg. F | €1,377.51 |
